5G set

The 5G Module Set is designed providing flexible and efficient solutions for embedded systems and IoT applications. It features M.2 B key 3052 slots to accommodate 5G Sub-6 modules, enabling high-speed wireless connectivity.

Specifications

Model	5G set
Applicable product	D331、D133-1、D133S、D115W-1、D115S、D315-1、D315-2、D135 (Antenna refer to here)
Software	Driver is included
Specification	Quectel RM520N-GL 5G Sub-6 Module Dimensions: 52mm × 30mm × 2.3mm Connector interface: M.2 B key 3052
Temperature	Operating temperature -40 °C ~ 85 °C Storage temperature -40°C ~ 85°C

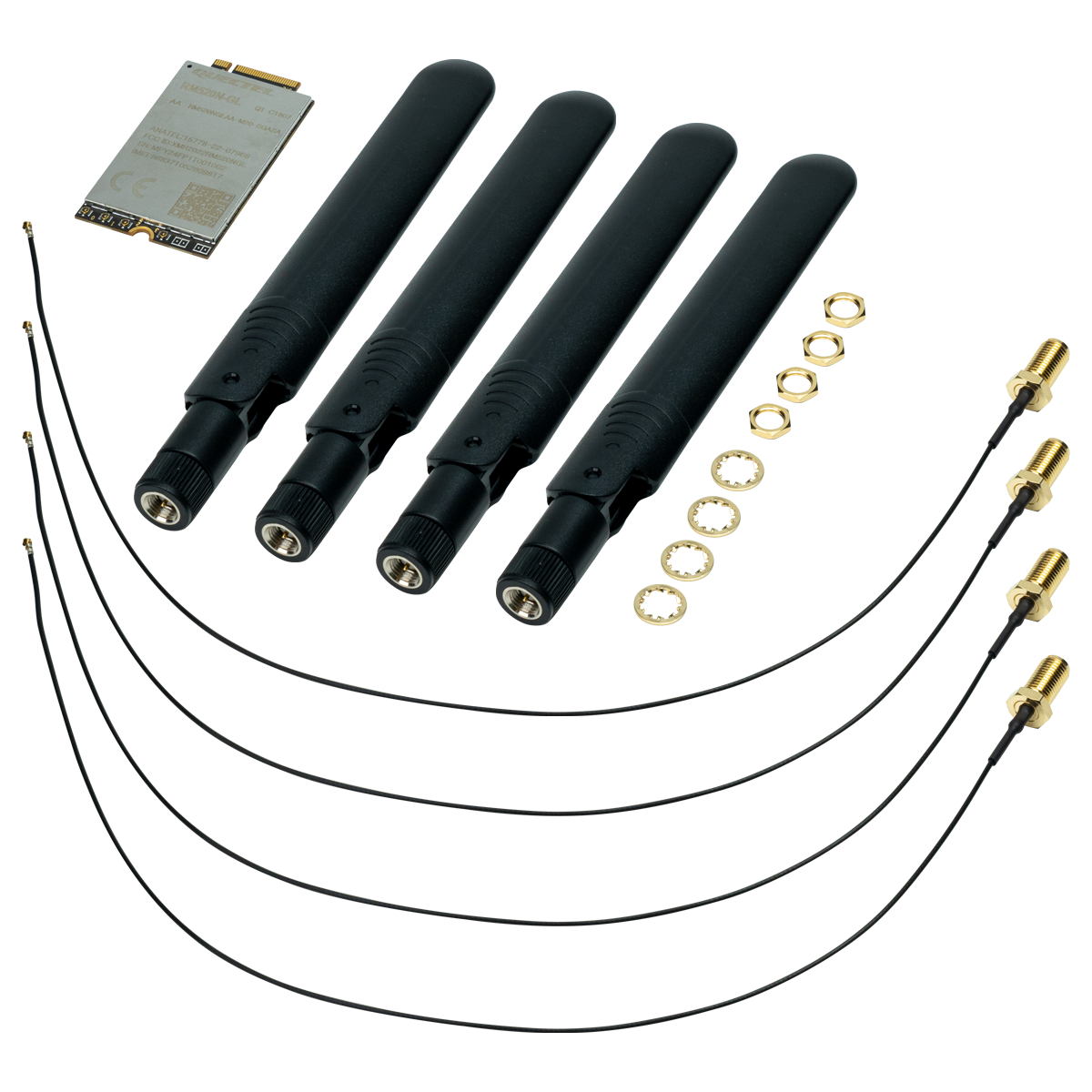

Package	1x Quectel RM520N-GL 4x 617MHZ~5.85GHz Antenna with SMA/M 4x I-PEX MHF4L/M TO SMA/F cable

* All specifications are subject to change without prior notice.

Ordering information

Model	Part Number	Applicable Product
5G set	60D3150001AD	D331、D133-1、D133S、D115W-1、D115S、D315-1、D315-2、D135 (Antenna refer to here)
