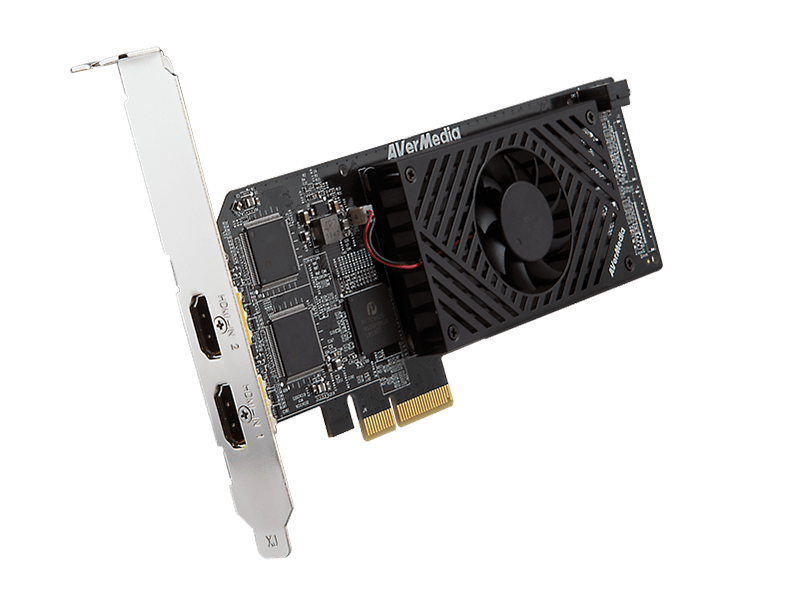

CL312H1

4Kp30 HDMI 2-Channel Low Profile Video Frame Grabber

  • Maximum input resolution up to 4096×2160/30fps
  • Low-profile PCI Express form factor
  • Reduce the capture latency to shorten the time required for a full frame of image to be captured
  • Support hardware up/down scaling, de-interlacing, and color space convert
  • Support 10-bit color depth
  • For 4-channel model: CL314H1
Frame Grabber CL312H1

Overview

AVerMedia CL312H1, the 4Kp30 HDMI 2-channel low profile video capture card, is equipped by four HDMI channels with the embedded audio input and supports astounding uncompressed real-time video capturing up to 4096×2160 30fps resolution.

CL312H1 can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, which can eventually provide a more lifelike and smooth video playback experience.

Hardware scaling, de-interlacing, and color space conversion

With the AVerMedia Video Engine Technology inside, it can perform various video processing tasks such as frame rate conversion, hardware up/down scaling, de-interlacing, and so on without consuming the computing power of the target platform.

Hardware Scaling, de-interlacing, color space conversion

Improved Quality and Reliability

With the powerful FPGA-based design, the CL312H1 is able to achieve a better performance and provide more improved capture quality and reliability.

Low Profile Form Factor

Suitable for small-footprint embedded platform, the compact low profile form factor design provides a better use of internal space and reduces cable routing. It increases the use of interior space for a more flexible heat spreading solution.

Hardware Video Processing

CL312H1 has built-in AVerMedia Video Engine technology which implements most useful video enhancing features to significantly reduce the efforts of CPU and the software development. In other words, this can help our clients to achieve the better cost saving of the hardware platform and the development resource.

Support up to 4:4:4 10-bit RGB and YUV

The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.

Frame Grabber CL312H1_features_02
CL312H1_features_03

Versatile AVerMedia SDK

Industrial customers can develop vertical applications flexibly and efficiently by using AVerMedia’s exclusive designed SDK with features such as device control, media capture, A/V processing and more.

Learn more about AVerMedia SDK.

Specifications

ModelCL312H1
Host InterfacePCIe Gen2 x 4
Audio InterfaceHDMI embedded PCM
Audio FormatEmbedded HDMI, PCM
Audio Sampling Rate32/44.1/48KHz
Connector TypeHDMI Type A
Input InterfaceHDMI*2 (HDMI 1.4a)
Video FormatYUV444: IYU2, AYUV, V410, Y410 YUV422: YUY2, YUYV, UYVY, V210, Y210 YUV420: I420, NV12, YV12 RGB: RGB565, RGB555, RGB24, RGB32, ARGB
Color Depth8 bit/10bit
Channel No.2 channels
Max. Input Resolution4096 x 2160 @ 30fps (by pass)
Max. Recording Resolution2-CH 4096x2160 30fps (by pass)
Encoding ModeSoftware Encoding
Multi-Card SupportYes
Supported OSWindows 7, 8.1, 10 (32/64-Bit) Linux Kernel 2.6.14 and above (32/64-bit)
Form FactorPCIe Low Profile
Dimension (L x W)180 x 68.78 mm
Power Consumption16W
Operating Temperature0°C ~ 60°C
Operating Humidity5% - 80% Relative Humidity
Safety CertificationFCC / CE

*All specifications are subject to change without prior notice.
