Type

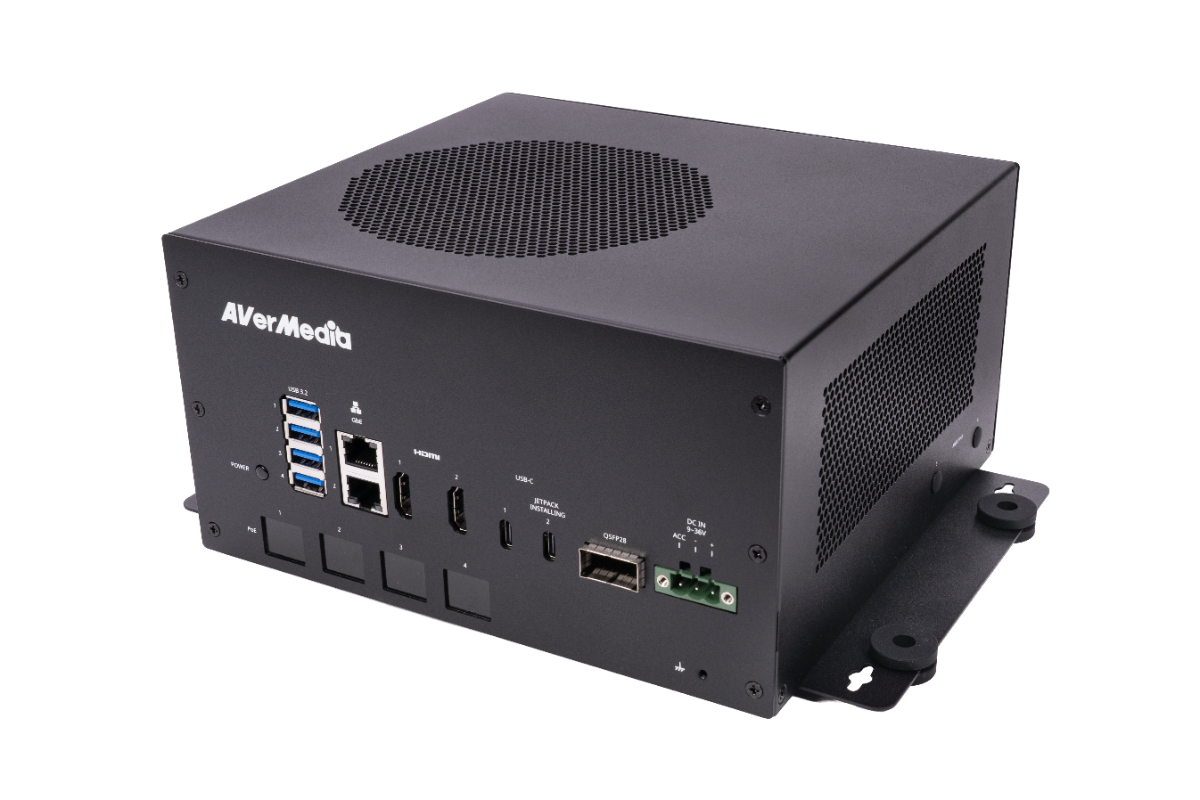

BOX PC

NVIDIA Module Compatibility

Networking

• 2x GbE RJ-45 (OOB on board, one port is NCSI)

• 1x QSFP (4× 25 GbE)

• 1 x M.2. key E 2230 for wifi 6

• 1x M.2 Key B for 5G

SIMSlot

2x SIM slot for 4G/5G module dual sim support

Display Output

2 x HDMI output (3840 x 2160 at 60Hz)

Temperature

• Operating temperature: -25 to 50°C

• Storage temperature -40°C ~ 85°C

• Relative humidity 40 °C @ 95%, Non-Condensing

Camera Inputs

1x 120pin for GMSL camera board

USB

• 1x USB 3.2 Type-C for BSP install

• 1x USB 3.1 Type-C

• 4x USB 3.2 Type-A

• Optional 8x USB3.2 Type-A (via daughter board)

Audio

2x 3.5mm phone jack for Mic in & line out.

Storage

• 2x NVMe M.2 Key M 2280

• 1x NVMe M.2 Key M 2280 x2 PCIe Gen5 (8xPoE, 8xUSB board, either one)

• 1x NVMe M.2 Key M 2280 x4 PCIe Gen5

TPM

TI SLB9672XU2.0 on board

Expansion

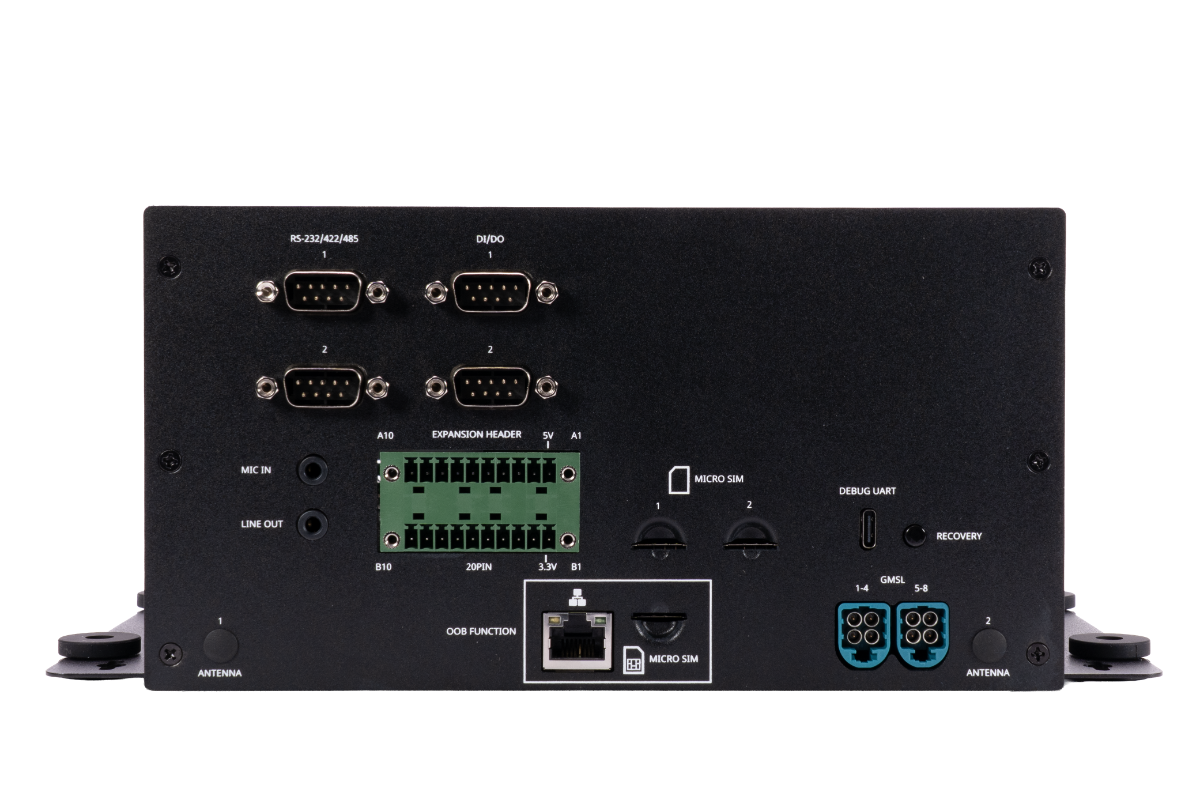

• 2x10 Euro Terminal Block (1x CAN-FD (Isolated 3KV), 3x CAN-FD with Transceiver, +5V  output 1A , +3.3V output 1A,UART, I2C)

• IO Board COMx1 & DB9 DI/DO

    - UART to RS232/RS485/RS422 (DIP switch for programable)

     -4xDI/4xDO with 20mA driver

• IO Board COMx1 & DB9 DI/DO:

     -UART to RS232/RS485/RS422 (DIP switch for programable)

     -4xDI/4xDO with 20mA driver

• 2x 5-pin JTAG connector

• 1x 40pin coaxial connector for PCIe expansion (daughter board 8xPSE/8xUSB )

• Samtec  240P Board to Board (PCIe x8 / RGMII /VDD_9~12V / USB 3.0/USB 2.0/GPIOs /I2C (Via Daughter board)

GPS

1xmPCIe for Optional Dual-RTK GNSS support (via daughter board)

Sensor

Temperature sensor for PCB top/bot Temperature measure

Power requirement

Terminal block 3Pin & Mini-fit 6pin (Internal)

9~36V DC Input

ACC IN / IGN Control (ACC optional, via switch)

Thermal Solution

• 1x SOM FAN

• 2x Chassis Fan (12V fan wafer)

Buttons

Power and Recovery

LED

1x system power
1x input power

MISC

• 1x Mini-fit 4Pin DC output for PSE expansion (Pass-through 10A)

• 1x DC output wafer (9~12V) for GMSL

• 1x USB-C for Debug_UART (Share with OOB)

• DIP Switch for function control

     AT/ATX Mode select

     ACC Enable /  Ignore ACC for Development (default)

RTC Battery

Support RTC battery and battery life monitoring by MCU

PCB/Electronics Mechanical Info

• W: W: 211mm x L: 194mm x H: 115mm
• Weight: 3KG (TBD)

Certifications

CE, FCC, VCCI, KC (TBD)

Package

1x Carrier board

Screws

Nuts
