4G set
The 4G LTE Module Set is designed providing flexible and efficient solutions for embedded systems and IoT applications. It features M.2 B key 3042 slots to accommodate 4G LTE modules, enabling high-speed wireless connectivity.
Specifications
Model | 4G set | |
|---|---|---|
Applicable product | D133 (5G) 、D115W (5G)、D315 (5G) 、D135 | |
Software | Driver is included | |
Specification | Quectel EM05-G LTE Cat 4 150Mbps(DL)/50Mbps(UL) Module Dimensions: 42mm × 30mm × 2.3mm Connector interface: M.2 B key 3042 | |
Temperature | Operating temperature -40 °C ~ 85 °C Storage temperature -40°C ~ 85°C | |

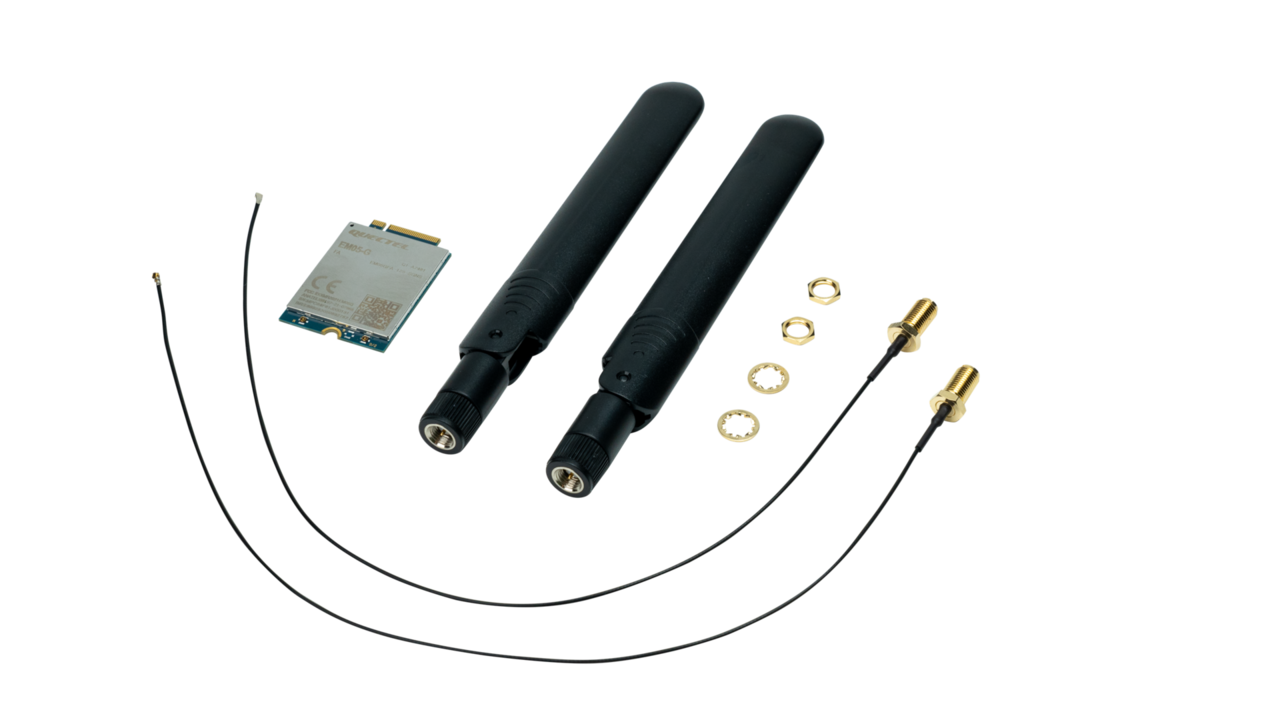

Package | 1x Quectel EM05-G Module 2x 617MHZ~5.85GHz Antenna with SMA/M 2x I-PEX MHF4L/M TO SMA/F cable | |
* All specifications are subject to change without prior notice.
