Peripheral - 5G-daughter-board

개요 다운로드
구매처 정보

5G Daughter Board

[Preliminary]



The 5G daughter board supports 4G/5G modules and capture cards, providing flexible and efficient solutions for embedded systems and IoT applications.

Overview





The 5G daughter board supports 4G/5G modules and capture cards, providing flexible and efficient solutions for embedded systems and IoT applications.

It features M.2 slots to accommodate 4G/5G modules, enabling high-speed wireless connectivity.  It also supports various interfaces, allowing for high-resolution image capture.



It's suited  for smart city applications, supporting real-time data transmission and infrastructure monitoring; industrial automation, enabling robust machine-to-machine communication and real-time control; and remote surveillance, offering stable connections and high-definition video streaming. It meets modern demands for rapid connectivity and high-quality image processing.

Specifications

Model

5G Daughter Board

Applicable  product

D133 (5G) / D115W (5G)

I/O

1 x M.2 Key. B for 4G/5G module

1 x M.2 Key. M (Gen3 x1) for SSD/Capture card

( In practice, the SSD is installed on the daughter board, while the capture card is installed on the motherboard.)

1 x  Micro SIM slot

Power  Input

1 x 5pin wafer for 12V power from the motherboard

Environment

Operating temperature  -40°C ~ 85°C  (TBD, The actual situation depends on the box PC spec. )

Storage temperature -40°C ~ 85°C

Mechanical

 76.7 x 90mm

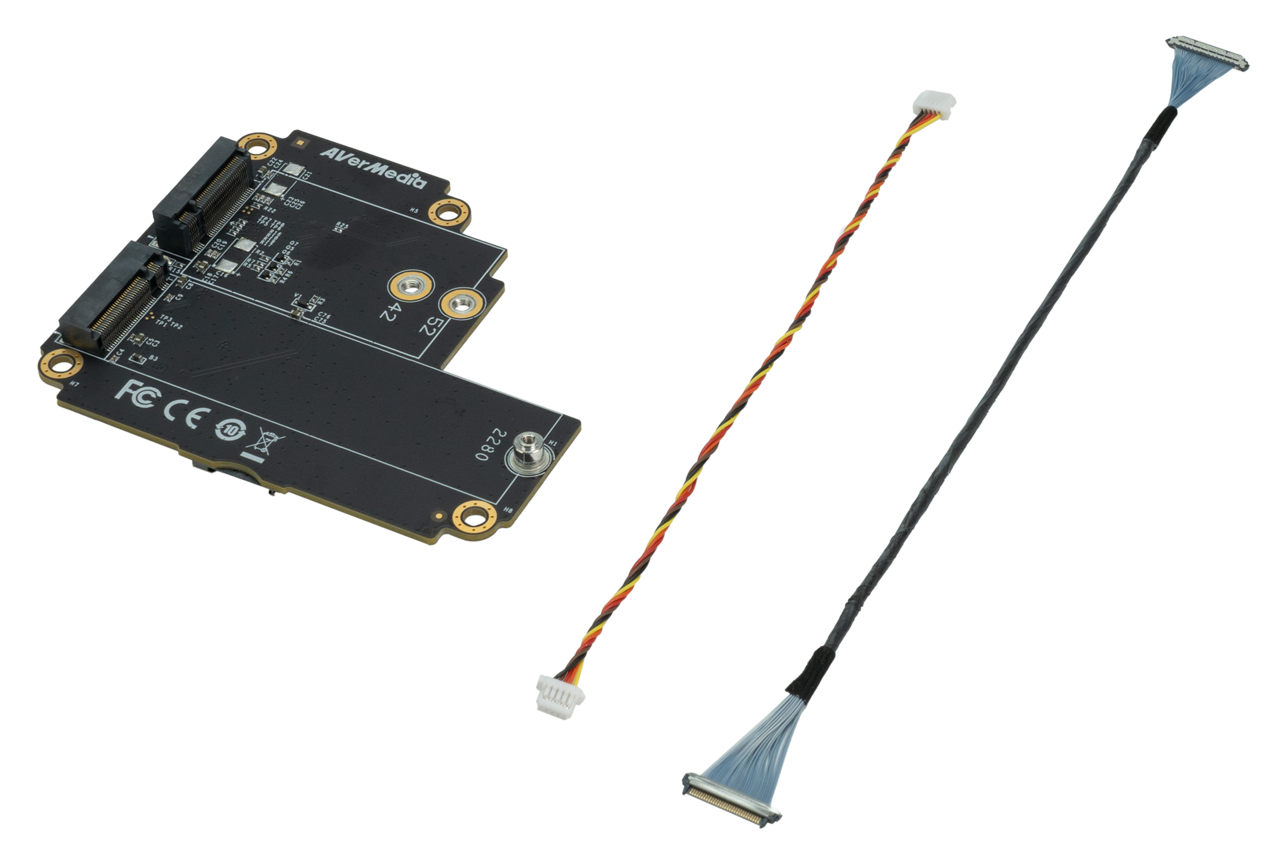

Package

Daughter Board

Power cable

Micro Coaxial connection cable

Screws

* All specifications are subject to change without prior notice.

다운로드

2D drawing
3D drawing
APPRO
BSP
BSP for AGX Orin
BSP for Nano
BSP for NX
BSP for Orin Nano
BSP for Orin NX
BSP for TX2 NX
BSP Version Update
D3 Embedded
Daemon
Datasheet
Datasheet
Datasheet
Datasheet
Driver
Econ
FAQ
Fireware
Firmware
Leopard
Mechanical
ORBBEC
RealSense
SDK and Capture Studio
Sensing
Source code
Stereolabs
TIER IV
User Manual

Date : 2025-04-09 00:00:00

5G daughter board_3D Drawing

Date : 2024-05-30 00:00:00

5G Daughter Board datasheet
