Peripheral - 10G-board

Overview Download

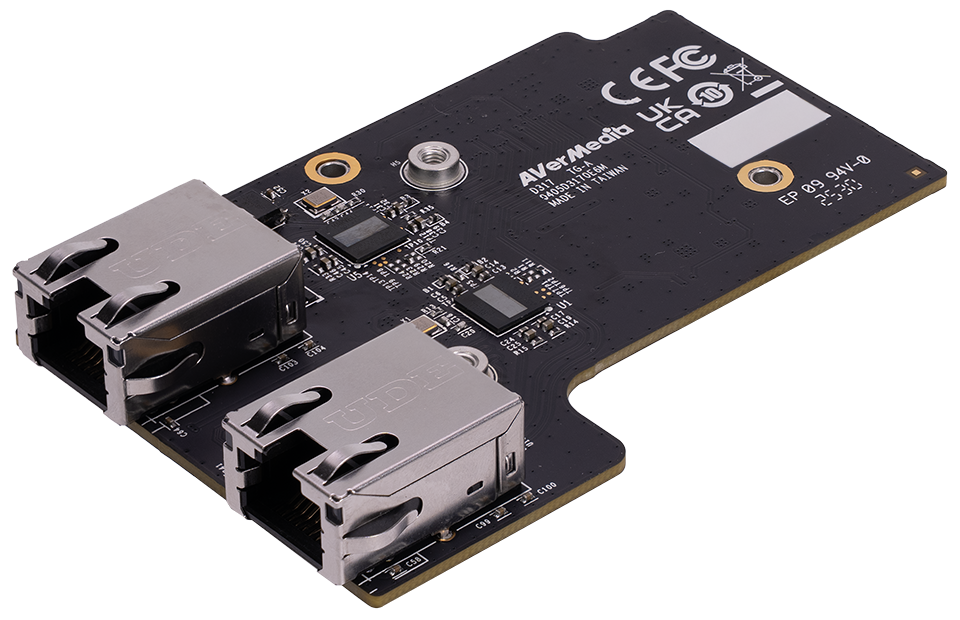

10G Board [New]

Applies to AVerMedia's D317 series

•2x 10G Ethernet RJ45

Specifications

Model	10G board
Applicable product	D317
Feature	2x 10G Ethernet RJ45
Expansion Connector	40pin 0.4mm High Speed Coaxial connector
Temperature	Operating temperature -40°C ~ 60°C (The actual situation depends on the box PC spec. ) Storage temperature -40°C ~ 85°C
Mechanical	W: 92x L:62.69x H:20.8mm
Package	10G board Coaxial cable Screws

* All specifications are subject to change without prior notice.

Ordering information

Model	Part Number	Applicable Product
F2T14	61D317TG01AX	D317
