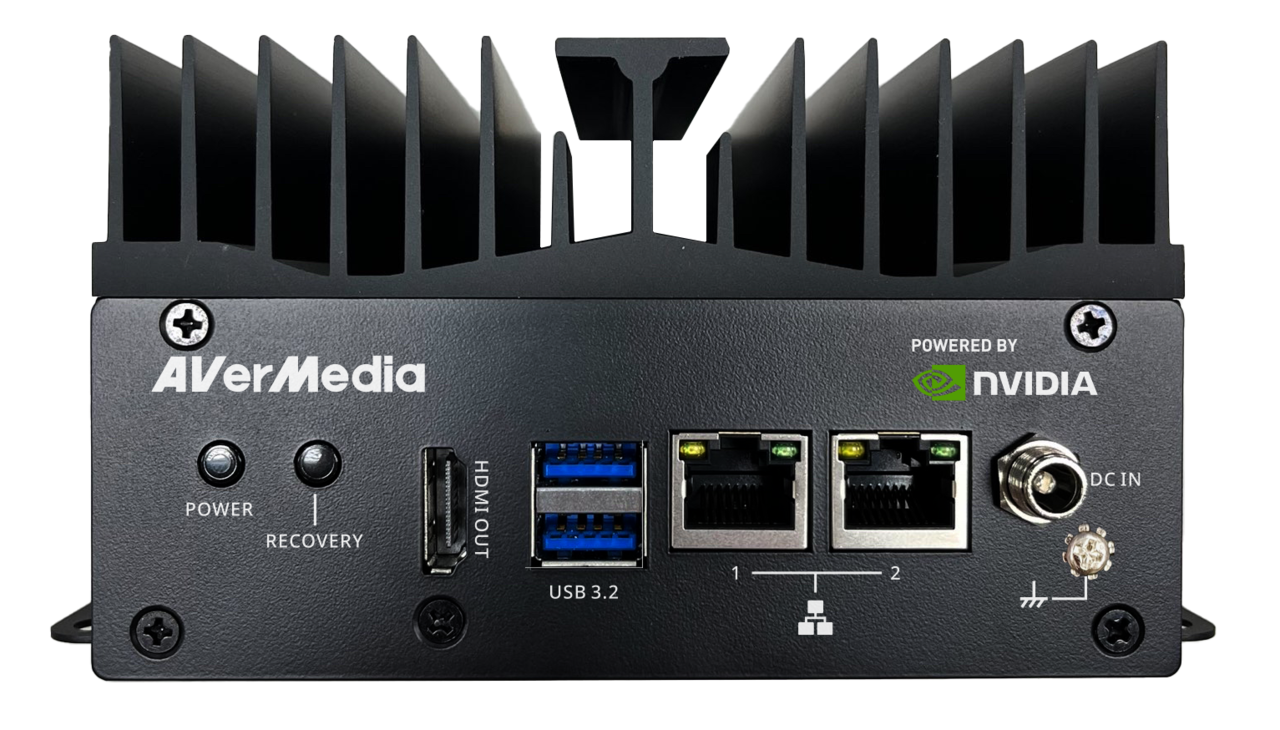

Standard Box PC for NVIDIA® Jetson Orin™ NX Module
Support Super Mode
Applies to NVIDIA® Jetson Orin™ NX module
Support Super Mode
2 x M.2. for WIFI and SSD
2 x GbE RJ-45 (Optional: Ethernet 1 supports PoE ; Ethernet 2 can be used for OOB management via NC-SI)
OOB for Power cycling and Cloud serial console (Optional)
1 x 5G daughter board for 4G/5G card functions (Optional)
1 x HDMI output
20-pin expansion header
Dimension: W: 126mm x L: 96mm x H: 74mm
AVerMedia's AI Box PC D115SOXP equips powerful NVIDIA® Jetson Orin™ NX module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.
D115SOXP is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MOQ, in addition to NVIDIA's JetPackTM SDK.
Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others' Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | D115SOXP |
|---|---|
Type | Box PC |
NVIDIA Jetson SOM | NVIDIA® Jetson Orin™ NX module (16GB / 8GB) |
Super Mode | Support |
Networking | 2x GbE RJ-45 (Optional: Ethernet 1 for PoE* ; Ethernet 2 can be used with OOB for NC-SI function** ) |
Display Output | 1 x HDMI output3840 x 2160 at 60Hz for Orin NX |
Temperature | Operating temperature -25°C~40°C (for Orin NX super mode), -25°C~60°C (for Orin NX normal mode) |
MIPI Camera Inputs | 2x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch Connector |
USB | 1x USB 2.0 type C for recovery |
Storage | 1x M.2. key M 2280 for NVMe (256G SSD installed in box PC) |
Expansion Header (Internal) | 20 pins: 2x I2C, 2x UART, 4x GPIOs, 1xCAN (EU terminal block)*** 15-pin & 10-pin: Supports OOB management via OOB module (optional, sold separately) 40-pin wafer: Supports 4G/5G card functions via daughter board (optional, sold separately) |
Security | TPM 2.0 supported |
Input Power | DC in JACK on board & ATX 4pin |
Power Cord | US/JP/EU/UK/TW/AU/CN |
Fan Module | Fanless Solution |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
Dimensions | 126mm x 96mm x 73.9mm (4.96"x 3.78"x 2.91") (TBD); Weight: 1kg (TBD) (for Orin NX super mode) 190mm x 200mm x 80mm (TBD); Weight 2kg (TBD) (for Orin NX normal mode) |
Certifications | CE, FCC, VCCI,KC (TBD) |
Package | 1x D115SOXP Box PC (256G SSD installed) |
Model | Old SKU Number | New SKU Number | NVIDIA SOM | |
|---|---|---|---|---|
D115SOXP | D115SOXP-8G-001 | D115SOXP-8G-001 | Orin NX 8G | - |
D115SOXP | - | D115SOXP-8G-002 | Orin NX 8G | RMII Function (Eth) |
D115SOXP | - | D115SOXP-8G-003 | Orin NX 8G | NCSI Function (Eth) |
D115SOXP | D115SOXP-16G-001 | D115SOXP-16G-001 | Orin NX 16G | - |
D115SOXP | - | D115SOXP-16G-002 | Orin NX 16G | RMII Function (Eth) |
D115SOXP | - | D115SOXP-16G-003 | Orin NX 16G | NCSI Function (Eth) |
*With the optional OOB module, the default configuration uses Ethernet 2 on the D115S for OOB management, rendering the OOB-Ethernet on the OOB module inactive. Alternatively, we offer another option that allows users to manage via the Ethernet on the OOB module, changing the box PC configuration from 2 RJ45 ports to a total of 3 RJ45 ports, including the RJ45 on the OOB module.
Part Number | Description | Quantity |
|---|---|---|
041312GOYANW | ADAPT_AC/DC_100~240V_19V_4.73A_W/LOCK M8 | 1 |
064APOWERB3X | CABLE_POWER-C13-JP(3PIN)_1830㎜ | 1 |
064APOWERB32 | CABLE_POWER-C13-JP(2PIN+GND with warning label)_1830㎜ | 1 |
065AMC421ACG | PLUG_TERMINAL BLOCK_1*10PIN | 2 |
Item | Part Number | Product Name | Type | Description | Remark |
|---|---|---|---|---|---|
1 | 51D115SEX1AJ | 5G daughter board | Board | Support 1xM.2. M key for SSD and 1xM.2 B key for 4G/5G |
|
2 | 0700WLAN0AWX | Wi-Fi 6E AX210 set | Board | Wi-Fi 6E-intel AX210 (include 1xcable and 2xantennas) |
|
3 | 60D3150000AE | 4G set | Board | Quectel EM05_LTE Cat 4 M.2 Module+2xCable+2xAntenna | Need 5G daughter board |
4 | 60D3150001AD | 5G set | Board | Quectel RM520N Series_5G Sub-6 GHz M.2 Module+4xCable+4xAntenna | Need 5G daughter board |
* For details, please refer to the "Accessory-PoE Board" webpage.
** For details, please refer to the "Accessory-OOB module" webpage. Ethernet 2 supports NC-SI for enabling Allxon OOB and In-Band functions simultaneously.
***When equipped with the OOB module, 2x UART will be unavailable.
****Please contact your local sales for more information. All specifications are subject to change without prior notice.
Date : 2026-03-24 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.4 (Jetpack 6.2.2) | AVERMEDIA_JETPACK-R1.4.0.6.2.2 | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode | ReadMe |
Date : 2026-03-24 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.4 (Jetpack 6.2.1) | AVERMEDIA_JETPACK-R1.3.2.6.2.1 | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode | ReadMe |
Date : 2025-09-11 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.4 (Jetpack 6.2.1) | AVERMEDIA_JETPACK-R1.2.3.6.2.1 | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode | ReadMe |
Date : 2025-07-10 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.10.6.2.0 (Beta) | AGX Orin | ReadMe |
Date : 2025-05-07 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.4.6.2.0 (Beta) | AGX Orin | ReadMe |
Date : 2025-02-28 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.0.6.2.0 (Beta) | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode | ReadMe |
