D135

NVIDIA® Jetson Orin NX 16GB module

IP65 (IP67 by request) BOX PC

IP65 BOX PC (IP67 by request)
Either 8x GMSL2 (Z-code) or 4x M12 (X-Code) PoE 802.3af
2x M12 X-Code for GbE with PoE 802.3af
1x M12 A-Code (Isolated CAN BUS 2.0 Port With Transceiver, 2 port, Engineering Port)
2x M20 USB 3.0 (Type A)
1x M12 A-Code 12pin (4x GPI & 2x GPO & 1x RS485, Engineering Port)
1x M12 B-Code 5pin Power Input
1x Vent Plug (Pressure Equalization/Liquid Protection/Condensation Prevention/Gas Venting/Dust Protection)
Operating Temperature:
-40~70°C for 8x GMSL+2x POE
-40~60°C for 6x POE
Optional RF: 6x connectors FAKRA for WIFI 6/4G/5G/GPS
Optional IP67/69K Camera: oToBrite 2.5M camera series
Optional: Support 24/7 Edge AI device remote management with OOB disaster recovery solutions (NCSI)

Overview

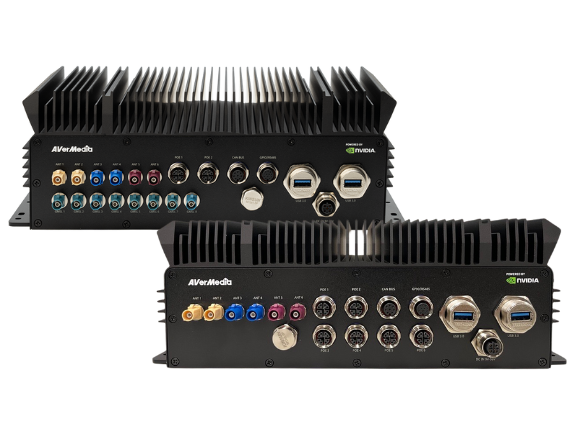

AVerMedia’s AI Box PC D135 equips powerful NVIDIA® Jetson Orin NX module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D135 BOX PC is designed for the IP65 (IP67 by request) and features a rich assortment of waterproof I/O ports for rapid AI-based solution development and seamless deployment as required by demanding applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

AMRs

AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.

Smart Security

Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.

Specifications

Model	D135OXB
Type	IP65 Box PC (IP67 by request)
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Orin NX 16GB Module
Indication	2x Single LED
External I/O (waterproof)	Either 8 x GMSL2 (FAKRA SMB Plug Z-code) or 4 x PoE (M12 X-Code 8pin, with PoE 802.3af) 2 x M12 X-Code for GbE with PoE 802.3af 1x M12 A-Code (Isolated CAN BUS 2.0 Port With Transceiver, 2 port, Engineering Port) 2x M20 USB 3.0 (Type A) 1x GPIO / RS485 (M12 A-Code 12pin, 4x GPI & 2x GPO & 1x RS485, Engineering Port) 1x M12 B-Code 5pin Power Input 6x ANT (2 for 4G/5G, 2 for Wi-Fi, 2 for GNSS) 1x Vent Plug (Pressure Equalization/Liquid Protection/Condensation Prevention/Gas Venting/Dust Protection)
Internal Slot	1x M.2 M key 2280 (256 GB NVMe SSD pre-installed) ( *The SSD capacity for the 6x POE SKU is limited to a maximum of 2TB) 1x M.2 E key 2230 (Wi-Fi, optional) 1x M.2 B key 3042 (4G) LTE module or 3052 (5G) module (optional) 1x mPCIe slot (optional for GNSS or GNSS RTK module)
Repair Area with an Access Panel with O ring for waterproof	1x Recovery mode push button 1x DIP switch for CAN terminal selection 1x USB 3.1 Type-A port 1x GbE RJ45 port 1x HDMI type A port (4Kp60) 1x USB-C (BSP flash) 1x USB-C UART port (Debug) 2x Micro SIM card slot (4G/LTE/5G), Only support in Dual SIM Single Standby (DSSS) mode, the limitation is from EM05(4G)
OOB (Optional)	AVerMedia OOB API and Solution (NCSI)
Super Capacitor	Super Capacitor (400W/sec)
Operating Temperature	-40~70°C (8x GMSL+2x POE) -40~60°C (6x POE) (*The system requires approximately at least 10 minutes of warmup time when operating at an ambient temperature of -40°C before it can be powered on.)
Storage temperature	-40°C ~ 85°C
Relative humidity	40 °C @ 95%, Non-Condensing
Power requirement	DC Input Range 9-36V DC input with Power Ignition Controller
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
Verification	MIL-STD-810H for shock & vibration
Mechanical Info	W: 300mm * L: 153mm* H: 103mm Weight: 4.9Kg
Certifications	CE, FCC, KC
Package	1x D135OXB (256G SSD pre-installed)
Adapter/Power Cord	N/A

*All specifications are subject to change without prior notice.

*Camera, Module, Antennas and Accessories are not included in the shipment. End customers can purchase and install them separately

Ordering Information

Model	SKU Number	Part Number	NVIDIA SOM	SSD	GMSL2 / POE	IP rate	Wi-Fi	4G/5G	OOB	Operating Temperature
D135	D135OXB-16G-004	61D135OXB1AH	Orin NX 16G	256 GB	8x GMSL2 + 2x POE	IP65	W/O	W/O	Optional	-40~70°C
D135	D135OXB-16G-008	61D1350001AF	Orin NX 16G	256 GB	6x POE	IP65	W/O	W/O	Optional	-40~60°C

Optional Accessories

Item	Part Number	Product Name	Type	Description
1	Please contact RBU Sales	IP67/69K Camera	GMSL2	oToBrite: oToCAM222-H61M、oToCAM222-C120M、oToCAM222-S195M、 oToCAM223-H61M、oToCAM223-C120M、oToCAM223-S195M
2	0700WLAN0AWX	Wi-Fi Module	M.2 E key 2230	Intel® Wi-Fi 6E AX210 (-40°C ~ 85°C)
4	60D3150000AE	4G LTE Cat4	M.2 B key 3042	Quectel EM05-G (-40°C ~ 85°C)
5	60D3150000AE	5G	M.2 B key 3052	Quectel RM520N-GL(-40°C ~ 85°C)
6	61D1350001AK	RTK GPS module	mPCIE	ublox F9P+F9H (-40°C ~ 85°C)
7	61D1350001AS	RTK GPS module	USB wafer	ublox F9P+F9H (-40°C ~ 85°C)
8	60D1350001AB	5 in 1 Combo External Antenna	FAKRA	IP67 Supports 4G/5G + Wi-Fi + Single GNSS (-40°C ~ 85°C), 3m(300cm)
9	60D1350001AD	GNSS External Antenna	FAKRA	IP67 Single GNSS Antenna with magnet (C-Code) (-40°C ~ 85°C), 3m(300cm)
10	60D1350001AC	4G/5G External Antenna	FAKRA	IP67 Single 4G/5G Antenna (D-Code) (-40°C ~ 85°C), 3m(300cm)
11	61D1350B01AV	OOB module (NCSI)	wafer	OOB BOARD Module+Cable (-40°C ~ 85°C)
12	By Region	Adapter	DC JACK	FSP 12V/5A for 8x GMSL + 2x POE (For POC)
13	By Region	Adapter	DC JACK	FSP 12V/10A for 6x POE (For POC)
14	60D1350001AE	M12 Power Cable	M12 5 pin to DC JACK	M12 5 pin to DC JACK B-Code male (POWER), 1m(100cm)
15	60D1350001AF	M12 POE to RJ45 Cable	M12 8 pin to RJ45	M12 8 pin X-Code POE to RJ45 Cable, 1m(100cm)

Orin Box PC

OS	Version (Beta)	Compatible SoMs	Release Note
L4T 39.2 (Jetpack 7.2.1)	AVERMEDIA_JETPACK-R4.1.7.7.2.1	Orin NX/Orin Nano/AGX Orin/AGX Orin Industrial/Thor T5000 & T4000	ReadMe

OS	Version (Beta)	Compatible SoMs	Release Note	Yocto Request Link
L4T 39.2 (Jetpack 7.2.1)	AVERMEDIA_JETPACK-R4.1.6.7.2.1	Thor T5000 & T4000 AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode	ReadMe	Yocto Request Link

OS	Version (Beta)	Compatible SoMs	Release Note	MIPI Raspberry Pie now only support V2 (IMX209) & V3 (IMX477)	GMSL Camera drivers are currently not supported in this BSP version
L4T 39.2 (Jetpack 7.2.0)	AVERMEDIA_JETPACK-R4.0.2.7.2.0	Thor T5000 & T4000 AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode	ReadMe

OS	Version	Compatible SoMs	Release Note
L4T r36.4.4 (Jetpack 6.2.2)	AVERMEDIA_JETPACK-R1.4.0.6.2.2	AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode	ReadMe

OS	Version	Compatible SoMs	Release Note
L4T r36.4.3 (Jetpack 6.2)	AVERMEDIA_JETPACK-R1.1.7.6.2.0	Orin NX 16G	ReadMe

Box PC - D135 (Orin NX 16G, Fanless)
