Peripheral - USB-board

Overview Download
Where to Buy

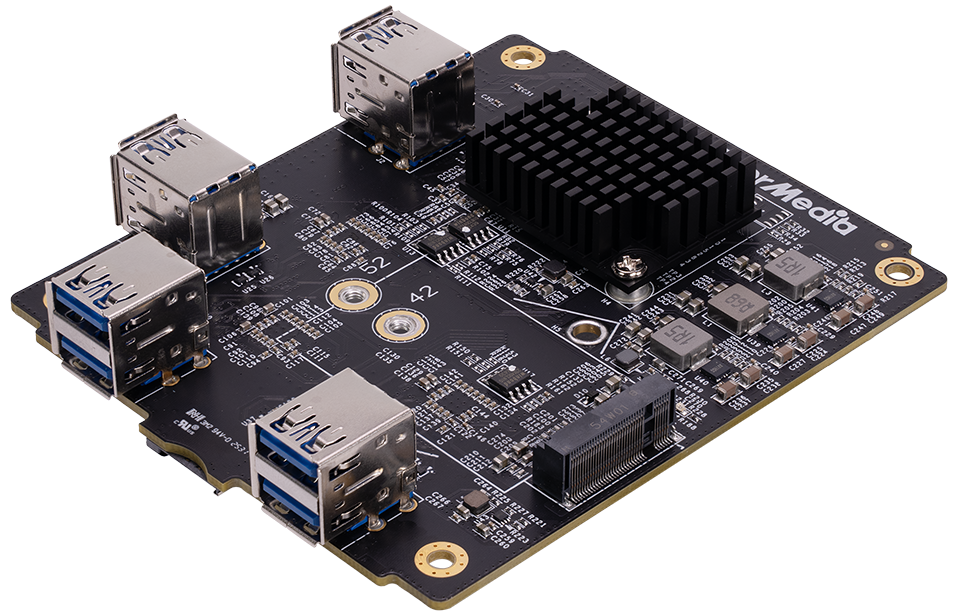

USB Board [New]

Applies to AVerMedia's D317 series



•8x USB port

•1x M.2 B key to support 4G/5G function







Specifications

Model

USB board

Applicable product

D317

Feature

  • 8x USB 3.0 (5Gbps) type-A Ports

  • M.2 Key.B 3042/3052 for 4G/5G Module

  • Independent USB PHY design, Optimized for USB webcam functionality

Power Input

12V , PoC power on coaxial

Temperature

  • Operating temperature  -40°C ~ 60°C
    (The actual situation depends on the box PC spec. )

  • Storage temperature -40°C ~ 85°C

Mechanical

 W: 92mm x L: 107mm

Package

  • USB board

  • Coaxial cable

  • Screws

* All specifications are subject to change without prior notice.

Ordering information

Model

Part Number

Applicable Product

F8U1M

61D317USB1AJ

D317
