5G set
The 5G Module Set is designed providing flexible and efficient solutions for embedded systems and IoT applications. It features M.2 B key 3052 slots to accommodate 5G Sub-6 modules, enabling high-speed wireless connectivity.
Specifications
Model | 5G set | |
|---|---|---|
Applicable product | D133 (5G) 、D115W (5G)、D315 (5G) | |
Software | Driver is included | |
Specification | Quectel RM520N-GL 5G Sub-6 Module Dimensions: 52mm × 30mm × 2.3mm Connector interface: M.2 B key 3052 | |
Temperature | Operating temperature -40 °C ~ 85 °C Storage temperature -40°C ~ 85°C | |

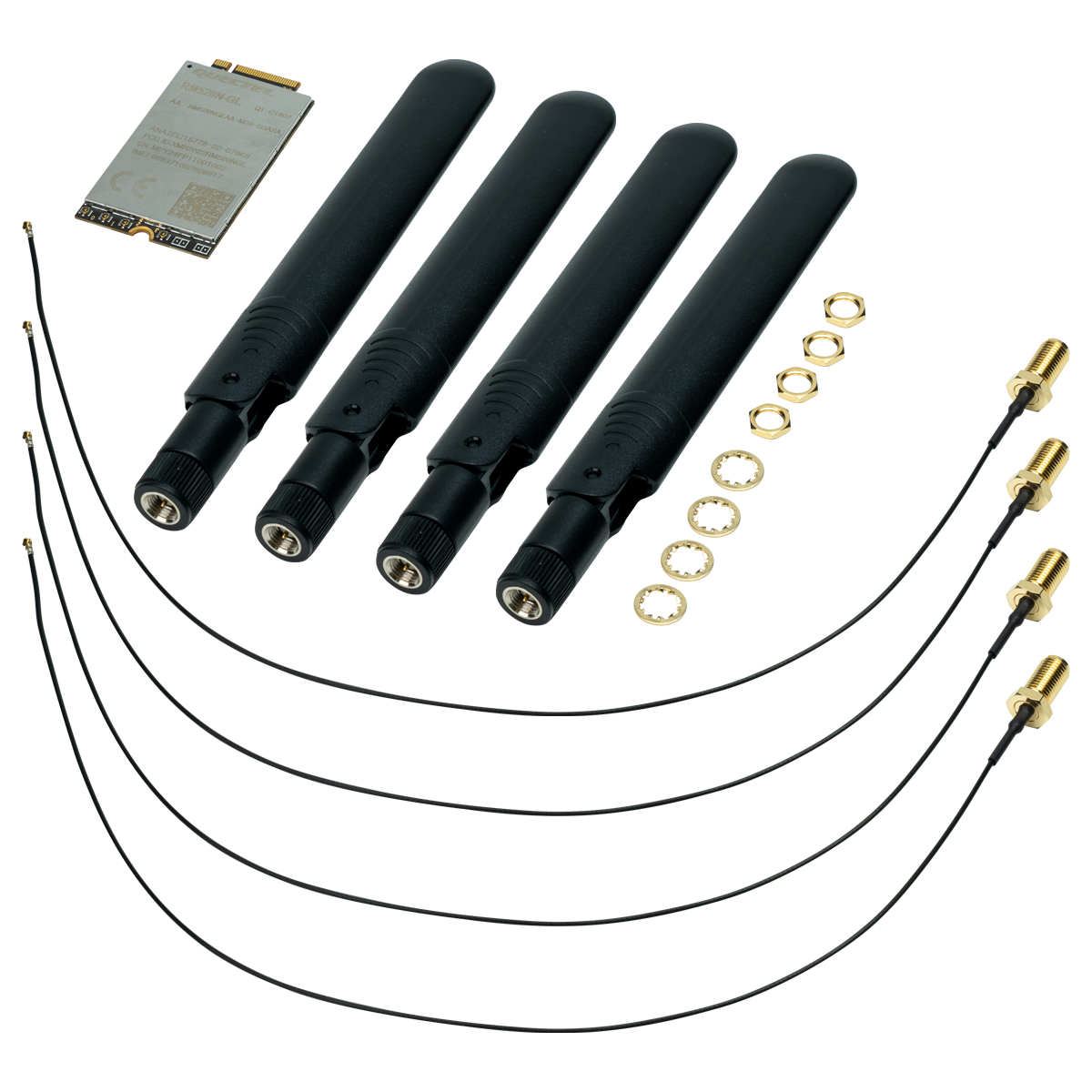

Package | 1x Quectel RM520N-GL 4x 617MHZ~5.85GHz Antenna with SMA/M 4x I-PEX MHF4L/M TO SMA/F cable | |
* All specifications are subject to change without prior notice.
