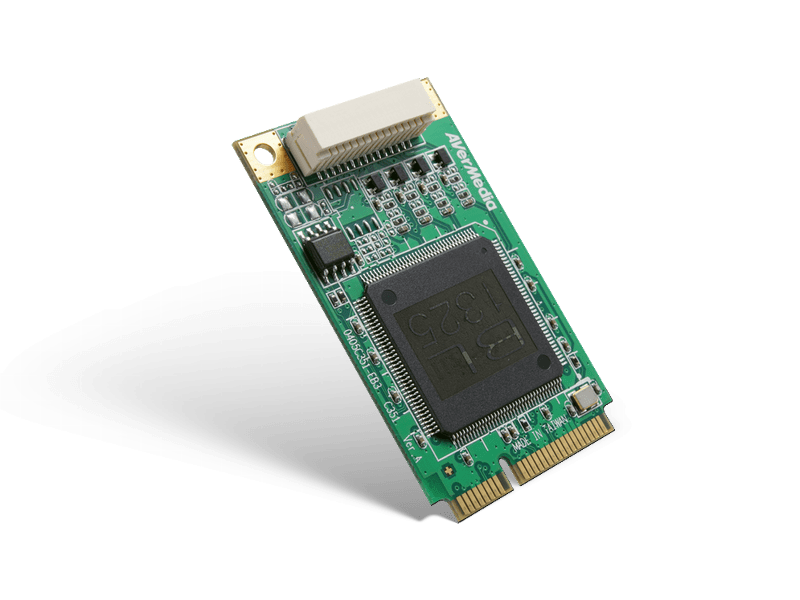

SD Quad-Channel Mini PCIe Video Frame Grabber
Supports extended operating temperatures from -40 to 85°C
Video capture with composite input
4-channel concurrent capture solution
Standard minicard dimensions
Mainstream programming languages supported
DirectShow compatible
The DarkCrystal SD Capture Mini-PCIe Quad simultaneously preserves up to four channels from multiple composite input sources, reducing system costs. DarkCrystal SD Capture Mini-PCIe Quad makes use of exclusive hardware design guarantying fast response and solid performance for high-density SD capture demands.
AVerMedia products are guaranteed to meet the highest standards to ensure performance under wide temperature ranges through extended life cycles. AVerMedia’s extended temperature capture line successfully operates at temperatures from -40°C to 85°C (-40°F to 185°F).
Our design and testing procedures meet stringent requirements resulting from the use of extended-temperature-grade components, on-board soldering of critical components, detailed engineering designs, and certified testing under harsh conditions. These thermal designs offer operational flexibility perfectly suited for rugged and industrial applications, including medical, industrial automation, factory automation, in-vehicle, and much more.
The DarkCrystal SD Capture Mini-PCIe Quad simultaneously preserves up to 4 channels from multiple composite input sources, reducing system costs.
The DarkCrystal SD Capture Mini-PCIe Quad offers a fast response and solid performance, all in a small form factored design.
Model | C351W |
|---|---|
Module Type | PCI Express Minicard |
Input | 4-ch Composite Audio (L/R) |
Video Resolution | NTSC (29.97Hz): 720 x 480, 640 x 480, 360 x 240, 320 x 240, 180 x 120, 160 x 120 PAL (25Hz): 720 x 576, 640 x 480, 360 x 288, 180 x 144 |
Color Adjustment | Brightness, Contrast, Hue (NTSC only), Saturation |
Operating Environment | Temperature: -40°C to +85°C Humidity: 0 to 90% RHNC |
Storage Environment | Temperature: -50°C to +85°C Humidity: 0 to 90% RHNC |
Power Requirement | 1.13W |
Dimensions (L x W) | 50.95 x 30mm |
| System Requirements |
|---|---|
CPU | Intel® Pentium®4 3.0 GHz AMD AthlonTM 64 3200+ |
Memory | 512 MB RAM |
VGA | VGA card with support for DirectX9.0c or above |
Sound Card | Yes |
Supported OS | Windows 7/8.1/10 (32/64 bits), Linux (32/64 bits)** |
*All specifications are subject to change without prior notice.
** Linux Services
‧ For driver availability, please contact support
‧ Driver customization service by request
