2K SDI/HDMI Dual-Channel M.2 Video Frame Grabber
Max. input resolution 2048 x 1080 60fps
Max. capturing/recording 1920 x 1080 60fps
Wide temperature and conformal coating design
CN312MN: Normal version
CN312MW: Wide temperature version
CN312MC: Wide temperature with conformal coating version
The latest M.2 compact Gen2x2 interface

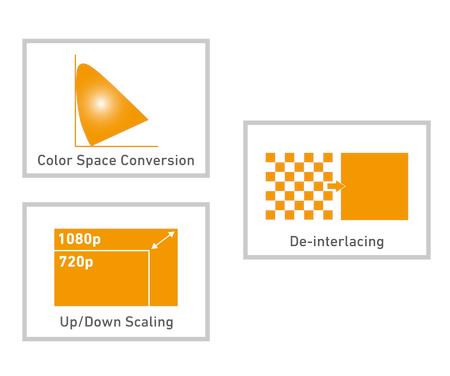

Hardware video processing:
1. hardware scaling
2. color space conversion
AVerMedia AVerGrabber CN312M, the Dual-Channel M.2 Video Capture Card, is equipped by one HDMI and one SDI channels with the embedded audio. With its HDMI and SDI video source input, it is able to support an astounding uncompressed real-time video capture resolution of up to 2048 x 1080 60fps (SDI)/ 1920 x 1200 60fps (HDMI).
At the frame rate of 60 fps, CN312M can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, which can eventually provide a more lifelike and smooth video playback experience.

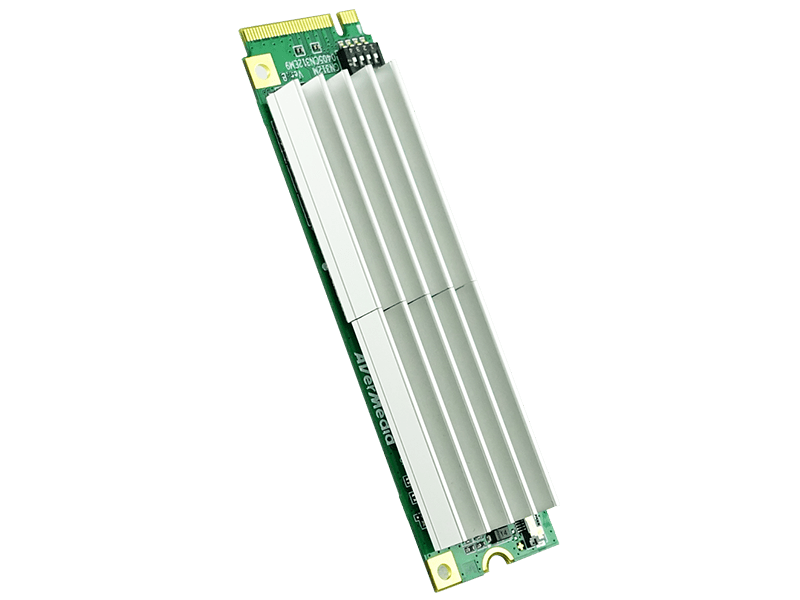

Nowadays, the M.2 compact form factor has become the hot trend. The dimension of a PCI Express M.2 is extremely compact and designed perfectly to fit into small-footprint embedded systems for industrial applications. Conforming to the most popular standard of M.2 2280, CN312M is the ideal solution for the education sector and industrial PCs, it features PCIe Gen2x2 interface with a theoretical bandwidth of 16 Gb/s.
CN312M has built-in AVerMedia Video Engine technology which implements most useful video enhancing features to significantly reduce the efforts of CPU and the software development. In other words, this can help our clients to achieve the better cost saving of the hardware platform and the development resource.
AVerMedia delivers this advanced solution, which is capable of withstanding the extreme temperature environment without compromising the video functionality. CN312MW (Wide Temperature Version) can offer the stable operation in the temperature range from -20°C to 70°C (-4°F to 158°F). Furthermore, CN312MC (Wide Temperature with Conformal Coating Version) thermally robust product is specifically designed to provide great reliability for the rugged and industrial applications to against moisture, dust, or chemicals.
Model | CN312M |
|---|---|
Host Interface | Gen2 x 2 |
Audio Format | HDMI/SDI embedded audio |
Audio Sampling Rate | 32/44.1/48KHz |
Connector Type | 1CH HDMI Type A 1CH BNC for SDI |
Input Interface | HDMI 1.4a, DVI-D 1.0 + 2K SDI |
Video Format | Driver support output: 4:2:0 8-bit : NV12, I420, YV12 4:2:2 8-bit : YUY2, YUYV, UYVY 4:4:4 8-bit: IYU2, BGR24, BGR32 |
Color Depth | 8-bit (support 10-bit video input) |
Channel No. | 2 channels |
Max. Input Resolution | 2048 x 1080@60fps (SDI) 1920 x 1200@60fps (HDMI) |
Max. Recording Resolution | 1920 x 1080@60fps |
Multi-Card Support | Yes |
Supported OS | Windows 7/ 8.1/ 10 (32/ 64 bit) Linux (based on V4L2, support x86, x64) |
Form Factor | M.2 (2280 Key M) |
Dimension (W x L x H) | CN312MN: 22 x 80 x 6.8 mm CN312MW/CM312MC: 22 x 80 x 26.3 mm |
Power Consumption | 3.3 W |
Operating Temperature | CN312MN: 0°C ~ 40°C CN312MW/CM312MC: -20°C ~ 70°C (with 0.5m/s airflow) |
Operating Humidity | 0% ~ 95% relative humidity |
Storage Temperature | -40°C ~ 85°C |
Safety Certification | FCC / CE |

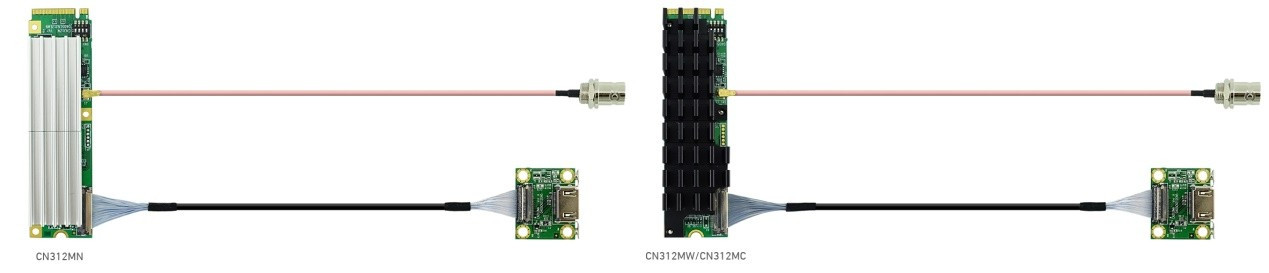

Package includes | CN312M x 1 BNC Cable x 1 HDMI Micro Coaxial Cable x 1 |
*All specifications are subject to change without prior notice.
