2K SDI Dual-Channel M.2 Frame Grabber
CN312SW: Wide temperature version
CN312SC: Wide temperature with conformal coating version
1. hardware scaling
2. color space conversion

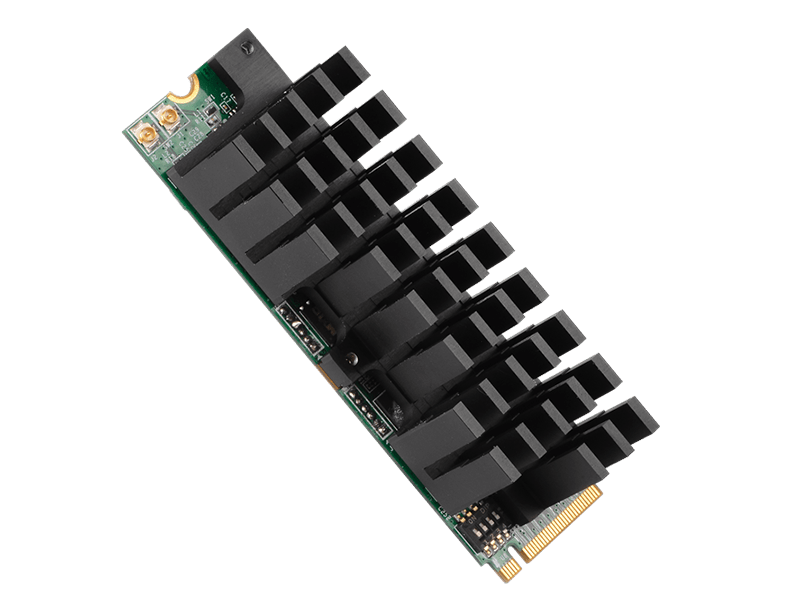

AVerMedia CN312SW is a wide temperature 2K SDI Dual-Channel M.2 Video Capture Card, which is equipped by two SDI channels with the embedded audio. With its SDI video source input, it is able to support an astounding uncompressed real-time video capture resolution of up to 2K (2048 x 1080).
At the frame rate of 60 fps, CN312SW can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, which can eventually provide a more lifelike and smooth video playback experience.
AVerMedia delivers this advanced solution, which is capable of withstanding the extreme temperature environment without compromising the video functionality. CN312SW (Wide Temperature Version) can offer the stable operation in the temperature range from -20°C to 70°C (-4°F to 158°F). Furthermore, CN312SC (Wide Temperature with Conformal Coating Version) thermally robust product is specifically designed to provide great reliability for the rugged and industrial applications to against moisture, dust, or chemicals.
Nowadays, the M.2 compact form factor has become the hot trend. The dimension of a PCI Express M.2 is extremely compact and designed perfectly to fit into small-footprint embedded systems for industrial applications. Conforming to the most popular standard of M.2 2280, CN312SW is the ideal solution for the education sector and industrial PCs, it features PCIe Gen2x4 interface with a theoretical bandwidth of 8 Gb/s.
CN312SW has built-in AVerMedia Video Engine technology which implements most useful video enhancing features to significantly reduce the efforts of CPU and the software development. In other words, this can help our clients to achieve the better cost saving of the hardware platform and the development resource.
Model | CN312SW | |
|---|---|---|
Host Interface | Gen2 x 4 | |
Audio Format | SDI embedded audio | |
Audio Sampling Rate | 48KHz | |
Connector Type | BNC for SDI | |
Input Interface | 2-channel 2K SDI | |
Video Format | Driver support output: 4:2:0 8-bit : NV12, I420, YV12 4:2:2 8-bit : YUY2 4:4:4 8-bit: IYU2, BGR24, BGR32 | |
Color Depth | 8-bit (support 10-bit video input) | |
Channel No. | 2 channels | |
Max. Input Resolution | 2048 x 1080@60fps | |
Max. Recording Resolution | 1920 x 1080@60fps (2-channel) | |
Multi-Card Support | Yes | |
Supported OS | Windows 7, 8.1, 10 (32/64-Bit) Linux (based on V4L2, support x64)* | |
Form Factor | M.2 (2280 Key M)
| |
Dimension (W x L x H) | 22 x 80 x 26.3 mm | |
Power Consumption | 3.3 W | |
Operating Temperature | CN312SW: -20°C ~ 70°C CN312SC: -20°C ~ 70°C (with 0.5m/s airflow) | |
Storage Temperature | -40°C ~ 85°C | |
Operating Humidity | 5% - 95% Relative Humidity | |
Safety Certification | FCC / CE |
*All specifications are subject to change without prior notice.
* Linux Services
‧ Contact support for driver availability
‧ Driver customization service by request
