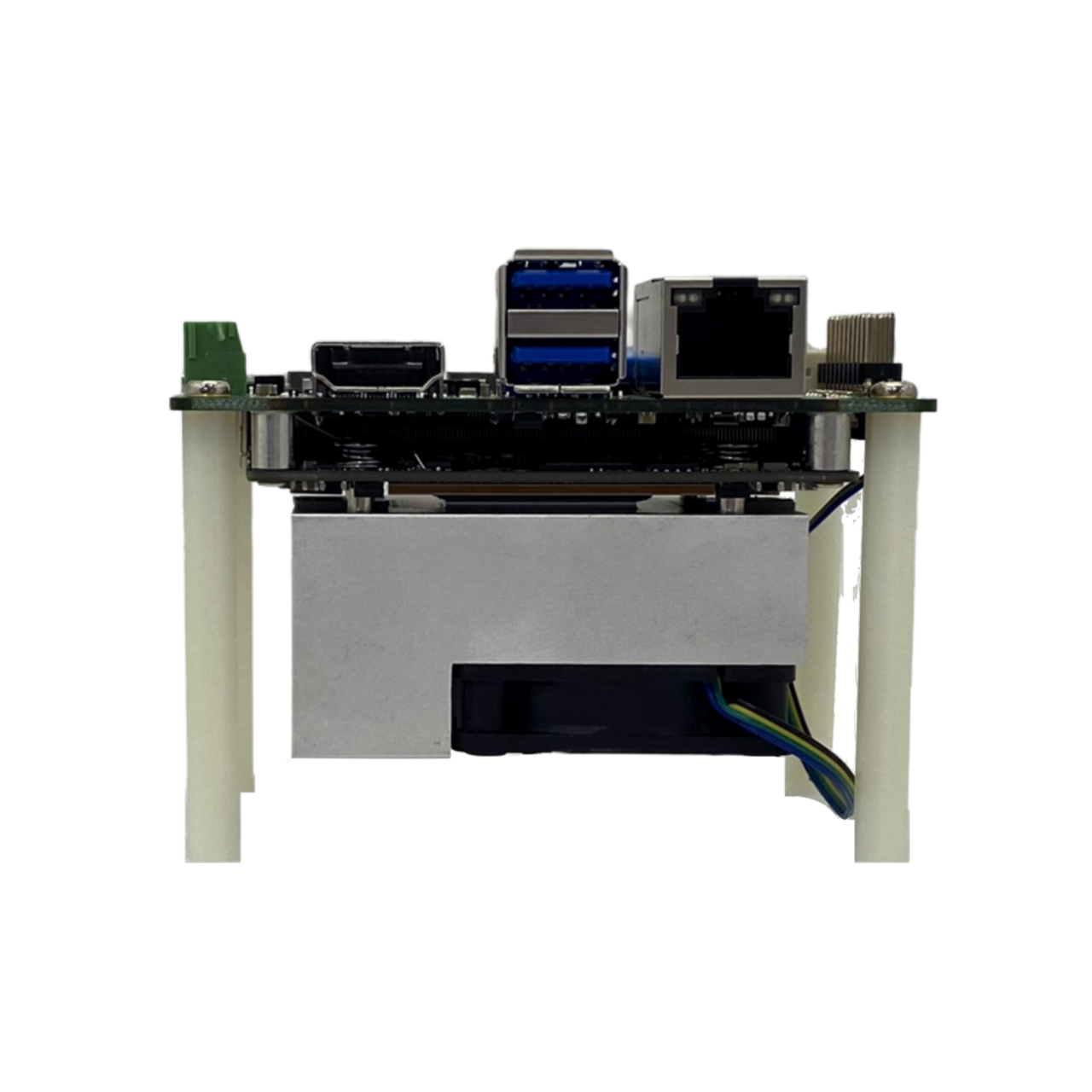

Engineering Kit built with NVIDIA® Jetson Nano™ Module
AVerMedia Development System D111NO is ideal for AI-centric applications such as smart retail, smart security, and much more. This development system includes a variety of I/O ports to support a wide range of sensors for your current project and to future-proof any ideas, you may have.
This development system also supports the NVIDIA JetPack™ and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT™ software libraries. These tools allow a speedy deployment.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart manufacturing delivers more productivity while enabling safer work environments.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | D111NO |
|---|---|
Type | Engineering Kit |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Nano™ module |
Networking | 1x GbE RJ-45 |
Display Output | 1x HDMI output 3840 x 2160 at 60Hz |
Temperature | Operating temperature 0°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
MIPI Camera Inputs | • 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector • 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector |
USB | 1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A |
Storage | 1x micro-SD card slot |
Expansion Header | 20 pins: 2x I2C, 1x UART, 9x GPIOs |
Input Power | 3.5mm Screw Terminal; 12V/5A |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
PCB/Electronics Mechanical Info | W: 87mm x L: 70mm x H: 58.2mm Weight: 175g |
Certifications | CE, FCC, KC |
Package | 1x Carrier Board 1x NVIDIA® Jetson Nano™ module 1 x NANO Fan module 1 x Power cable 1x Quick Guide 1x Screws Set |
| Technical Specifications | |
|---|---|
| GPU | 128-core Maxwell |
| CPU | 4 ARM A57 @ 1.43 GHz |
| Memory | 4 GB 64-bit LPDDR4 25.6 GB/s |
| Video Encode | 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
| Video Decode | 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) |
Optional Accessories | |
|---|---|
MIPI Camera | For 15-pin MIPI connector: 1. Raspberry pi camera v2 2. APPRO.PHO B-04 IMX179 (8M) MIPI 1080P (30fps) C-04 IMX290 (2M) MIPI 1080P (30fps) C-05 IMX290 (2M) +ISP (YUV) 1080P (30fps) For 36-pin MIPI connector: 1. APPRO.PHO B-03: IMX334 (4K) MIPI 4K (30fps) A-06: IMX334 (4K) V-by-One® HS x1 4K (30fps) |
*All specifications are subject to change without prior notice.
Date : 2025-05-20 00:00:00
| OS | Version | Compatible SOM | Release Note |
| [L4T 32.7.5] (Jetpack 4.6.5) | EN715-R1.5.1.4.6.5 | Nano | ReadMe |
Date : 2025-02-24 00:00:00
| OS | Version | Compatible SOM | Release Note |
| [L4T 32.7.5] (Jetpack 4.6.5) | EN715-R1.5.0.4.6.5 | Nano | ReadMe |
Date : 2021-12-20 00:00:00
