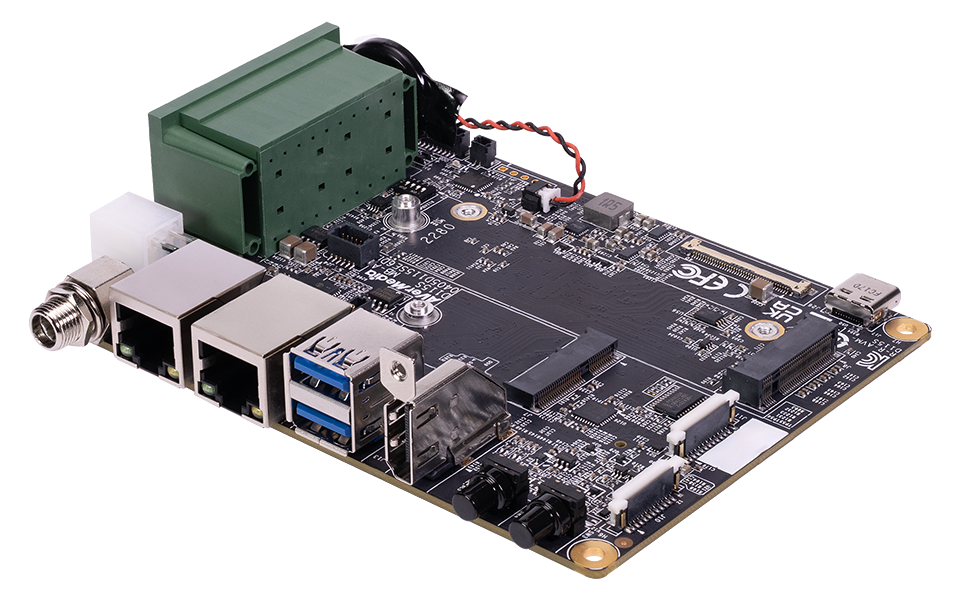

D115S

Standard Carrier Board

D115S for NVIDIA® Jetson Orin NX/Orin Nano Module

Applies to NVIDIA® Jetson Orin NX/Orin Nano
Support super mode
2 x 4 Lane MIPI CSI-2 MIPI Camera input
2 x M.2. for WIFI and SSD and 1 x HDMI output
2 x GbE RJ-45 (Optional: Ethernet 1 supports PoE ; Ethernet 2 can be used for OOB management via NC-SI)
1 x OOB for Power cycling and Cloud serial console (Optional)
1 x 5G daughter board for 4G/5G/capture card functions (Optional)
20-pin expansion header
Operating temperature: -40°C ~ 85°C
Dimension: W: 126mm x L: 96mm (TBD)

Overview

AVerMedia's AI Carrier board D115S applies to NVIDIA® Jetson Orin NX/Orin Nano module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D115S is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Specifications

Model	D115S
Type	Carrier Board
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Orin NX 16G/8G module NVIDIA® Jetson Orin Nano 8G module
Super Mode	Support
Networking	2x GbE RJ-45 (Optional: Ethernet 1 for PoE* ; Ethernet 2 can be used with OOB for NC-SI function )** 1xM.2. key E 2230 for wifi
Display Output	1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano
Temperature	Operating temperature -40°C~85°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs(Internal)	2x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch Connector
USB	1x USB 2.0 type C for recovery 2x USB 3.2 Type-A (Native 10Gbps per port)
Storage	1x M.2. key M 2280 for NVMe
Expansion Header	20 pins: 2x I2C, 2x UART, 4x GPIOs, 1xCAN (EU terminal block)* 40 pins: support 4G/5G/capture card functions via daughter board (optional, sold separately)** 15 pins & 10 pins: support OOB module (optional, sold separately)
Security	TPM 2.0 supported
Power requirement	DC in JACK on board & ATX 4pin 12V/5A, 12V~24V is recommended.
Power Cord	US/JP/EU/UK/TW/AU/CN (optional)
Thermal solution	Heat sink with fan (optional)
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info	126mm (W) x 96mm (L) x 26.5mm (H) (TBD) Weight: 125g (TBD)
Certifications	CE, FCC, VCCI,KC (TBD)
Package	1x D115S Carrier board Terminal blocks and screws

Ordering Information

Model	SKU Number	Description
D115S	D115S-001	Support Super Mode

Optional Accessories

Optional Accessories	Specs
MIPI Camera	For 22pin MIPI connector: 1. raspberry pi imx219 &imx477 (V2) 2. Manufacturer: APPRO.PHO ■B-04: IMX179 (8M) MIPI, 1080P (30fps)

* For details, please refer to the "Accessory-PoE Board" webpage.

** For details, please refer to the "Accessory-OOB module" webpage. Ethernet 2 supports NC-SI for enabling Allxon OOB and In-Band functions simultaneously.

***When equipped with the OOB module, 2x UART will be unavailable.

****Please contact your local sales for more information. All specifications are subject to change without prior notice.

Orin Carrier Board

OS	Version	Compatible SoMs	Release Note
L4T r36.4.4 (Jetpack 6.2.2)	AVERMEDIA_JETPACK-R1.4.0.6.2.2	AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode	ReadMe

OS	Version	Compatible SoMs	Release Note
L4T r36.4.4 (Jetpack 6.2.1)	AVERMEDIA_JETPACK-R1.3.2.6.2.1	AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode	ReadMe

OS	Version	Compatible SoMs	Release Note
L4T r36.4.4 (Jetpack 6.2.1)	AVERMEDIA_JETPACK-R1.2.3.6.2.1	AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode	ReadMe

OS	Version	Compatible SoMs	Release Note
L4T r36.4.3 (Jetpack 6.2)	AVERMEDIA_JETPACK-R1.1.10.6.2.0 (Beta)	AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode	ReadMe

OS	Version	Compatible SoMs	Release Note
L4T r36.4.3 (Jetpack 6.2)	AVERMEDIA_JETPACK-R1.1.4.6.2.0 (Beta)	AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode	ReadMe

Carrier Board - D115S(Orin NX / Orin Nano, Support Super Mode)
