Standard Carrier Board

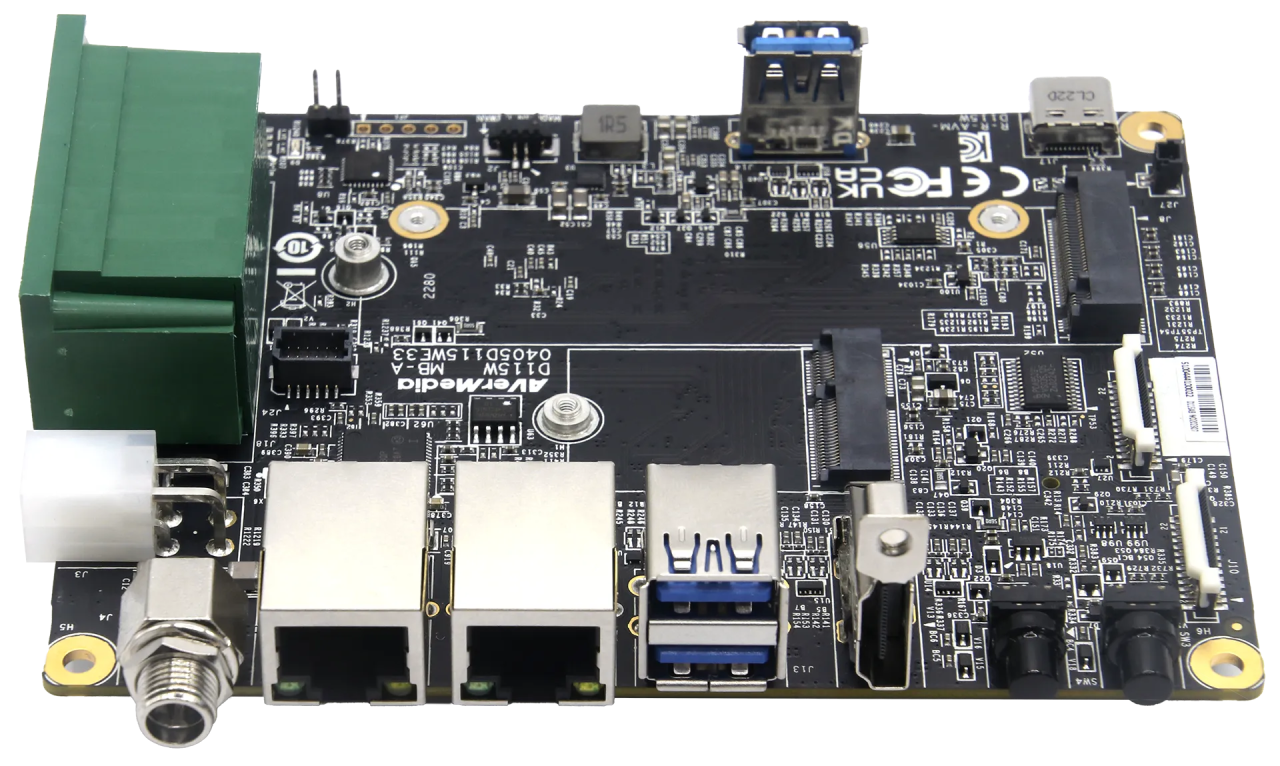

D115W for NVIDIA® Jetson Orin NX/Orin Nano Module
Supports Super Mode for Jetson Orin™ Nano
2 x 4 Lane MIPI CSI-2 MIPI Camera input
AVerMedia's AI Carrier board D115W applies to NVIDIA® Jetson Orin NX/Orin Nano module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.
D115W is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.
Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | D115W |
|---|---|
Type | Carrier Board |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Orin NX 16G/8G module |
Networking | 2x GbE RJ-45 (Optional: Ethernet 1 for PoE* ) |
Display Output | 1 x HDMI output 3840 x 2160 at 60Hz for Orin NX,30Hz for Orin Nano |
Temperature | Operating temperature -40°C~85°C |
MIPI Camera Inputs(Internal) | 2x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch Connector |
USB | 1x USB 2.0 type C for recovery |
Storage | 1x M.2. key M 2280 for NVMe |
Expansion Header | 20 pins: 2x I2C, 2x UART, 4x GPIOs, 1xCAN (EU terminal block) |
Power requirement | DC in JACK on board & ATX 4pin |
Power Cord | US/JP/EU/UK/TW/AU/CN (optional) |
Thermal solution | Heat sink with fan (optional) |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
PCB/Electronics Mechanical Info | 120mm x 90mm(4.72” x 3.54”) Weight: 125 g |
Certifications | CE, FCC, KC |
Package | 1x D115W Carrier board |
Model | SKU Number | Description |
|---|---|---|
D115W | D115W-001 | - |
D115W (5G) | D115W-002 | Compatible with OOB/5G/capture card through the OOB module and daughter board. Please note that a separate order is required. |
Optional Accessories | Specs |
|---|---|
MIPI Camera | For 22pin MIPI connector: |
* For details, please refer to the "Accessory-PoE Board" webpage.
**Please contact your local sales for more information. All specifications are subject to change without prior notice.
Date : 2026-03-24 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.4 (Jetpack 6.2.2) | AVERMEDIA_JETPACK-R1.4.0.6.2.2 | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode | ReadMe |
Date : 2026-03-24 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.4 (Jetpack 6.2.1) | AVERMEDIA_JETPACK-R1.3.2.6.2.1 | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode | ReadMe |
Date : 2025-09-11 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.4 (Jetpack 6.2.1) | AVERMEDIA_JETPACK-R1.2.3.6.2.1 | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode | ReadMe |
Date : 2025-07-10 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.10.6.2.0 (Beta) | AGX Orin | ReadMe |
Date : 2025-05-07 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.4.6.2.0 (Beta) | AGX Orin | ReadMe |
Date : 2025-02-28 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.0.6.2.0 (Beta) | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode | ReadMe |
Date : 2024-11-22 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T r36.4 (Jetpack 6.1) | D115W_ORIN-R3.2.0.6.1.0 | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-11-06 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 36.3 (Jetpack 6.0) | D115W_ORIN-R3.1.2.6.0.0 (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-05-06 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 35.5.0 (Jetpack 5.1.3) | D115W_ORIN-R2.2.1.5.1.3 (BETA) | Orin NX 16G/8G Orin Nano 8G/4G | ReadMe |
Date : 2024-03-12 00:00:00
| OS | Version | Compatible SOM | Release Note |
| L4T 35.3.1 (Jetpack 5.1.1) | D115WOX-R2.0.2.5.1.1 (BETA) | Orin NX 16G/8G | ReadMe |
