AI Inference Server - D337

概要
購入先

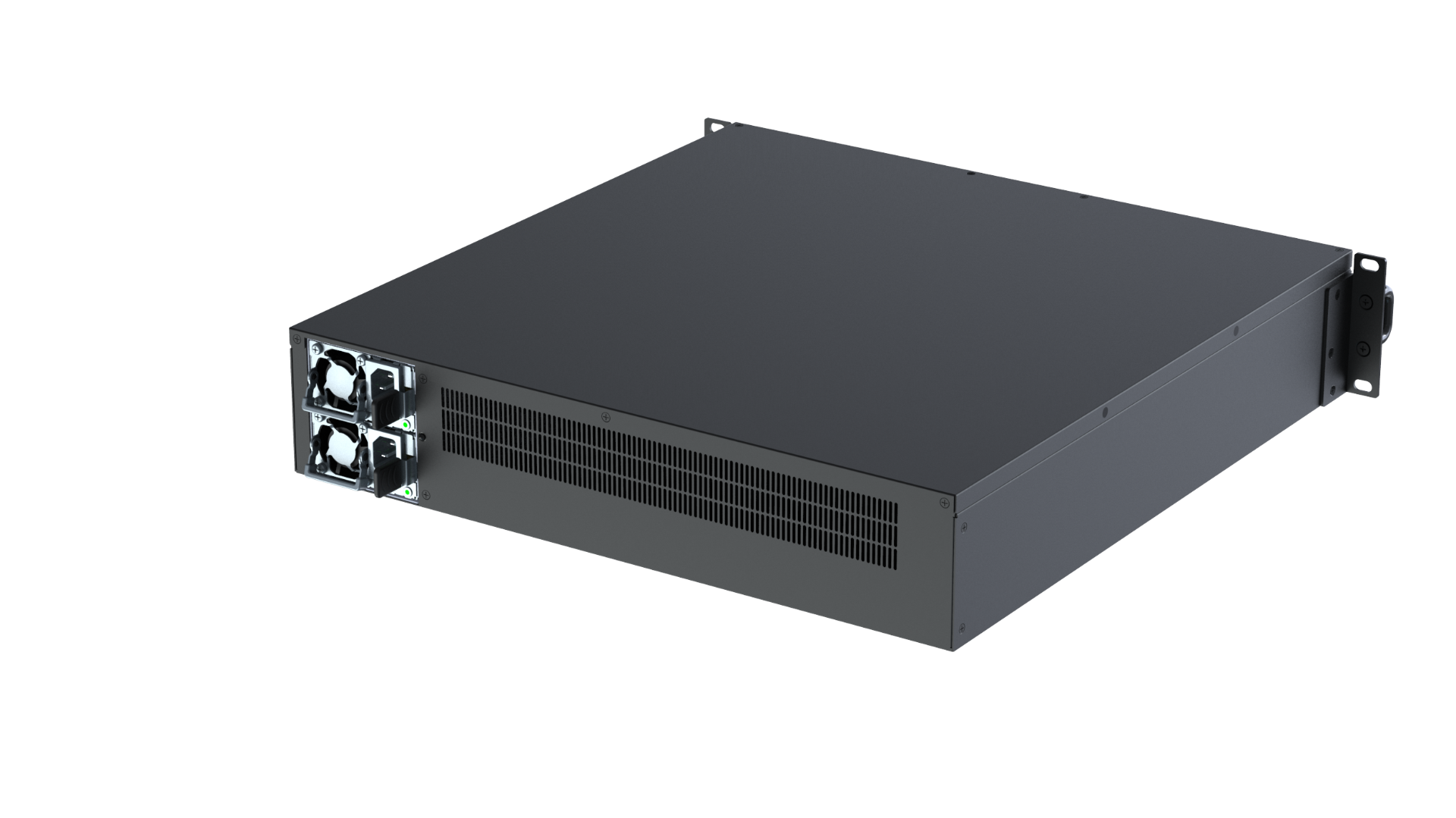

D337 AI Inference Server [NEW]

Tiger Dual NVIDIA® Jetson AGX Thor™ T5000 Platform

For Smart City/Inspection/Public Infrastructure

  • 2U Rack Mount with Rack Ears
  • 2x D333 with T5000 inside
  • 4x FAN ( Each D333 supporting FAN x 2, SUNON SUNON PF40561BX-Q100-S99 ), 12V/24W

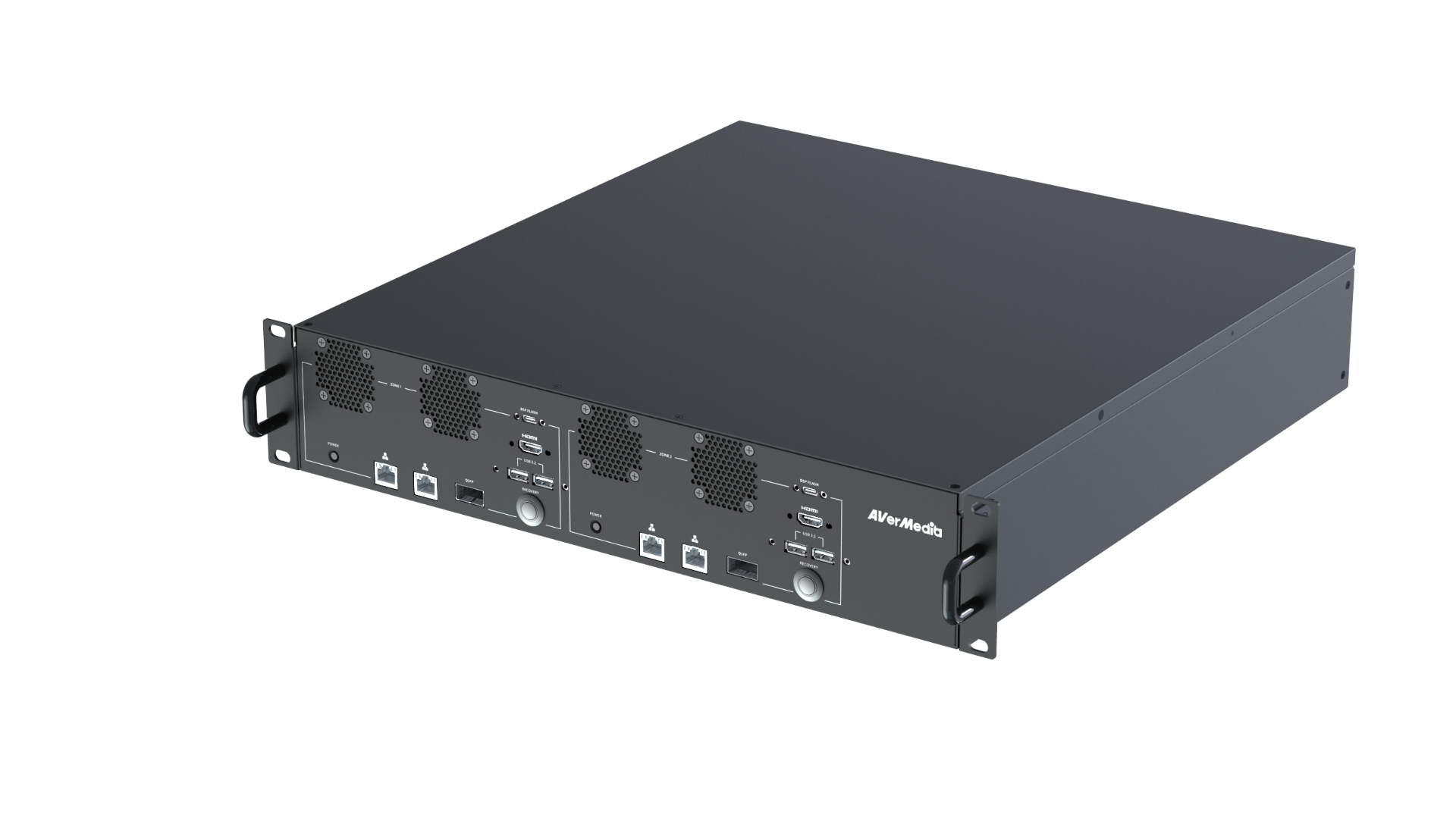

Front Side
Zone 1:
  • 1x USB Type C for BSP Flash
  • 1x USB Gen 2 Type A
  • 1x HDMI type A for HDMI 2.0 ( 3840 x 2160 at 60Hz )
  • 2x RJ-45 for Giga LAN ( right for OOB )
  • QSFP28 for Fiber 100G
  • 1x Power button
  • 1x Recovery button
Zone 2:
  • 1x USB Type C for BSP Flash
  • 1x USB Gen 2 Type A ( right for OOB )
  • 1x HDMI type A for HDMI 2.0 ( 3840 x 2160 at 60Hz )
  • 2x RJ-45 for Giga LAN
  • QSFP28 for Fiber 100G
  • 1x Recovery button
  • Dimension:
    W: 438 mm x L: 451.1mm x H: 88.9mm (without wall mount & power)
    W: 482.6 mm x L: 509.5mm x H: 88.9mm (with wall mount & power)



Overview



AVerMedia's D337 AI Inference Server equips Dual Powerful NVIDIA Jetson T5000™. This efficient system-on-module (SoM) opens new worlds of  embedded IoT applications with full analytic capabilities.

D337 AI Inference Server is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.





Key Industries



AVerMedia's Edge AI solutions support smarter surveillance, centralized video management, and AI-powered security applications.

Smart City – Traffic Management



AI-powered video analytics enable real-time traffic monitoring, vehicle recognition, and traffic flow optimization to improve urban mobility and road safety.

Smart Inspection



AI-driven visual inspection enables fast and accurate defect detection, improving quality control, operational efficiency, and production reliability.

Smart Public Infrastructure



Intelligent video monitoring enhances safety, security, and operational efficiency across airports, railway stations, and public spaces.

Specifications

Model

D337

NVIDIA Module Compatibility

NVIDIA Jetson T5000™

Networking

  • 2U Rack Mount with Rack Ears

  • 2x D333 with T5000 inside

  • 4x FAN ( Each D333 supporting FAN x 2, SUNON SUNON PF40561BX-Q100-S99 ), 12V/24W

Temperature

  • Operating temperature: 0°C ~ 40°C ( 32°F ~ 104°F ), IEC 60068, air flow: 0.7m/s

  • Storage temperature: -10°C ~60°C ( 14°F ~ 140°F ), IEC 60068

  • Storage Humidity: 5 ~ 95% @ 40°C, Non-Condensing

External I/O

Front Side

Zone 1:

  • 1x USB Type C for BSP Flash

  • 1x USB Gen 2 Type A

  • 1x HDMI type A for HDMI 2.0 ( 3840 x 2160 at 60Hz )

  • 2x RJ-45 for Giga LAN ( right for OOB )

  • QSFP28 for Fiber 100G

  • 1x Power button

  • 1x Recovery button

Zone 2:

  • 1x USB Type C for BSP Flash

  • 1x USB Gen 2 Type A ( right for OOB )

  • 1x HDMI type A for HDMI 2.0 ( 3840 x 2160 at 60Hz )

  • 2x RJ-45 for Giga LAN

  • QSFP28 for Fiber 100G

  • 1x Recovery button

Internal I/O

2x M.2 2280 NVMe M Key for SSD (Each D333 has one on board)

Security

TPM: Yes

Each D333 has one TPM ( TI SLB9672XU2.0 ) on board

System Storage

2x M.2 2280 NVMe M Key for SSD (Default: Pre-Installed 1TB SSD for each M Key )

Power Supply

AcBel R2CU4551A x 1

  • Redundant Power

  • 550W

  • 100V ~ 127V / 200V ~ 240V

RTC Battery

Support RTC battery and battery life monitoring by MCU

Mechanical Info

W: 438 mm x L: 451.1mm x H: 88.9mm (without wall mount & power)

W: 482.6 mm x L: 509.5mm x H: 88.9mm (with wall mount & power)

Certification

CE,FCC, VCCI, KC (TBD)

Others

Two D333 carrier boards are connected via external QSFP28 Fiber

Package

1x AI Inference Server

2x Power Cord (By region)
