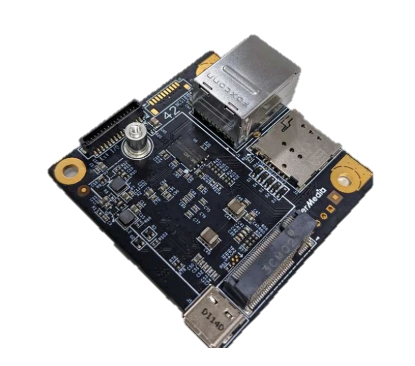

Edge Remote Management Interface (ERMI) Module

The ERMI Out-Of-Band (OOB) Management Module is a complete solution that provides remote device management services.

Applications:

- Power cycling

- Serial console

- M.2. B key slot for 4G module (optional)

- Key functions: Power Actions; Remote Terminal (SOL) Access; Virtual Media

Overview

Conquer the final challenge of your edge AI projects: seamless deployment and scalable management. The ERMI Out-Of-Band (OOB) Management Module is a complete solution that provides remote device management services.

In the event of an edge system malfunction and subsequent shutdown, the OOB function can be utilized to power the system back on and verify whether the device has resumed normal operations. The ERMI Module offers customers a customizable cloud-based device management portal for easily controlling all edge devices remotely.

Specifications

Model	ERMI (OOB) Management Module
Applicable product	D133-1, D133S, D115W-1, D115S, D135, D315-2, D317, QL601
System	Nuvoton NUC980
Device Management	Enables remote system monitoring, power control, serial console access, and virtual media for BSP OTA through the ERMI API, supporting efficient recovery and maintenance operations on edge devices.
Management Interface	• ERMI Local Management Portal • ERMI Redfish/REST API • Partner/3rd-party Portal Integration - Cogniteam
External I/O	•1 x RJ45 10/100Mb (LED indicator) •1 x Micro SIM slot for 4G module* •1 x USB slot for Wi-Fi dongle*
Internal I/O	•1 x 15pin wafer for (PWB、RST、5V、3V3、 Sys Debug UART、I2C、auto- link UART、Power detection pin、 GPIO) •1 x 10pin wafer for NCSI (supported by D115W & D135) •1 x reset button •1 x DIP switch for function setting •1 x USB type-C for MCU update •1 x 2pin wafer for SSD recovery (TBD)
Expansion	•1 x M.2 Key. B 3042 (only USB2.0) for 4G module*
Power Input	5V power
Environment	•Operating temperature -40°C ~ 85°C (TBD, The actual situation depends on the box PC spec. ) •Storage temperature -40°C ~ 85°C
Mechanical	55 x 56.2mm
Package	•ERMI Module •Cable •Screws

* We will support this feature upon customer request.

**The 10pin wafer on D131/D131L/D315 doesn't support NCSI.

*** The 2-pin wafer is for Apacer's SSD recovery function.

**** All specifications are subject to change without prior notice.
