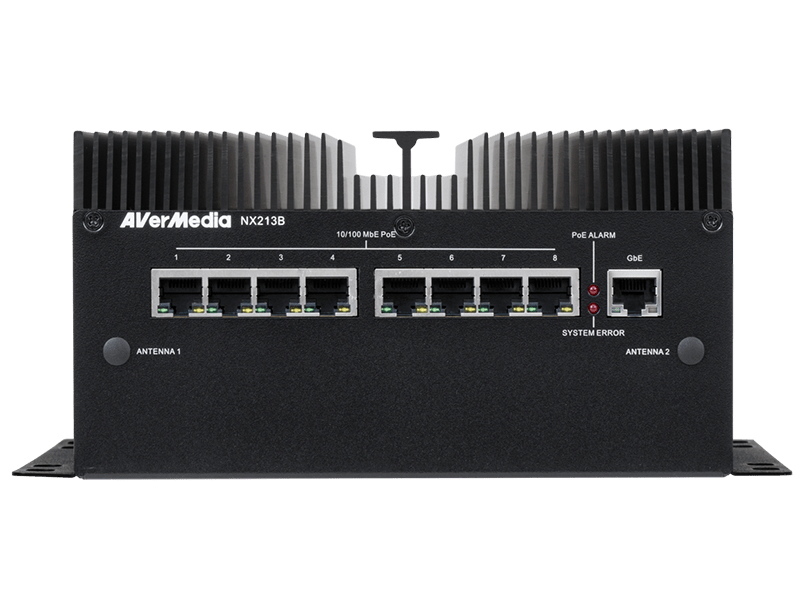

Standard Box PC NX213B Equips NVIDIA® Jetson™ Xavier™ NX Module
Embedded NVIDIA® Jetson Xavier™ NX 8GB/ 16GB module
8x 10/100 MbE with PoE
1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI output
20 pins with 1x UART, 2x I2C, 9x GPIOs
1x RS-485 (3 pins), 1x Micro-B USB 2.0 for recovery
1x mPCIe (Host Interface: USB 2.0)
Operating temperature: 0°C ~ 50°C
Dimension: W:190mm x L:175mm x H:100mm (W:225mm with mounting ears)
AVerMedia’s NX213B Box PC of NVIDIA® Jetson Xavier™ NX is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.

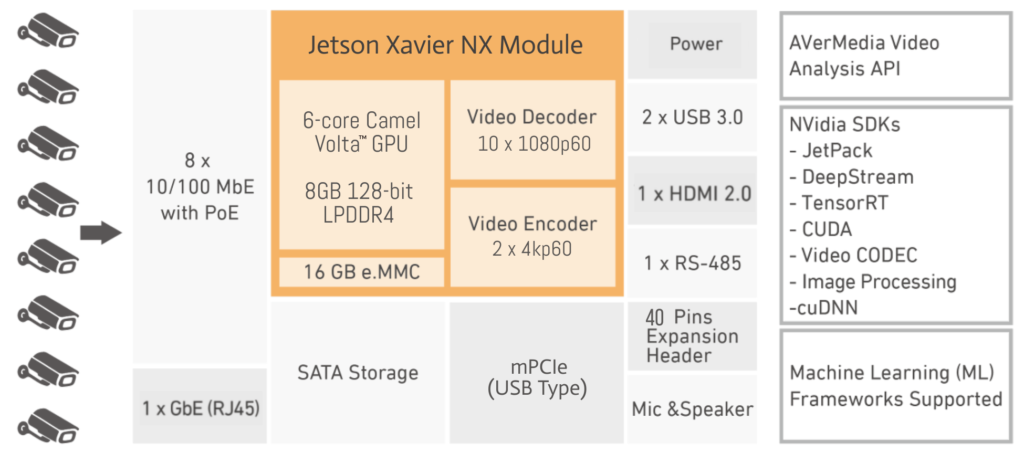

This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe, 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin expansion header (I2C, SPI, UART, I2S), 1x HDMI 2.0 out. NX213B can operate in the temperature range from 0°C ~ 50°C. Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
Benefiting from the Jetson Xavier™ NX and DeepStream SDK, it can simultaneously decode and analyze 8-channel 1080p60 IP camera videos.
Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
NX213B Box PC is designed as an application ready platform for multiple applications to improve the performance, flexibility and time to market. With NX213B, software developers not only can deploy their deep learning software on this system but also can market their software in a Box PC as a complete solution. This can greatly help simplify the efforts and processes of the system integration in launching their A.I. solution into the market faster.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | NX213B |
|---|---|
Type | Box PC |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Xavier™ NX 8GB/ 16GB module |
Networking | 1x GbE RJ-45 8x 10/100 MbE RJ-45 with PoE (Max for the first 4 ports is 15.4W and total power budget is 90W) |
Display Output | 1x HDMI 2.0a/b Type-A supports maximum resolution 3840x2160 at 60Hz |
Temperature | Operating Temperature 0°C ~ 50°C Storage Temperature -40°C ~ 85°C Relative Humidity 40 °C @ 95%, Non-Condensing |
USB | 1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A (USB 3.2 Gen1 x 1) |
Storage | 16GB e.MMC v5.1 |
GPIO Expansion | 1x 3.3V UART, 2x I2C, 9x GPIOs |
Audio | 1x Mic in, 1x Speaker out |
Input Power | 54V/2.78A |
Buttons | Power and Recovery Button (Power button is green LED) |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
Chassis Dimension/ Weight | W:190mm x L:175mm x H:80mm (W:225mm with mounting ears) Weight: 4 Kg |
Certifications | CE, FCC,KC |
*All specifications are subject to change without prior notice.
Part Number | Description | Quantity |
|---|---|---|
065AMC420ACF | PLUG_TERMINAL BLOCK_1*3PIN | 1 |
064APOWERBR2-IPD | CABLE_POWER-C13-USA_1830㎜ | 1 |
041318GOUANS | ADAPT_AC/DC_100~240V_54V_2.78A_W/LOCK M8 | 1 |
041318GOUANL | ADAPT_AC/DC_100~240V_54V_2.78A_FSP150 |
|
