NX215

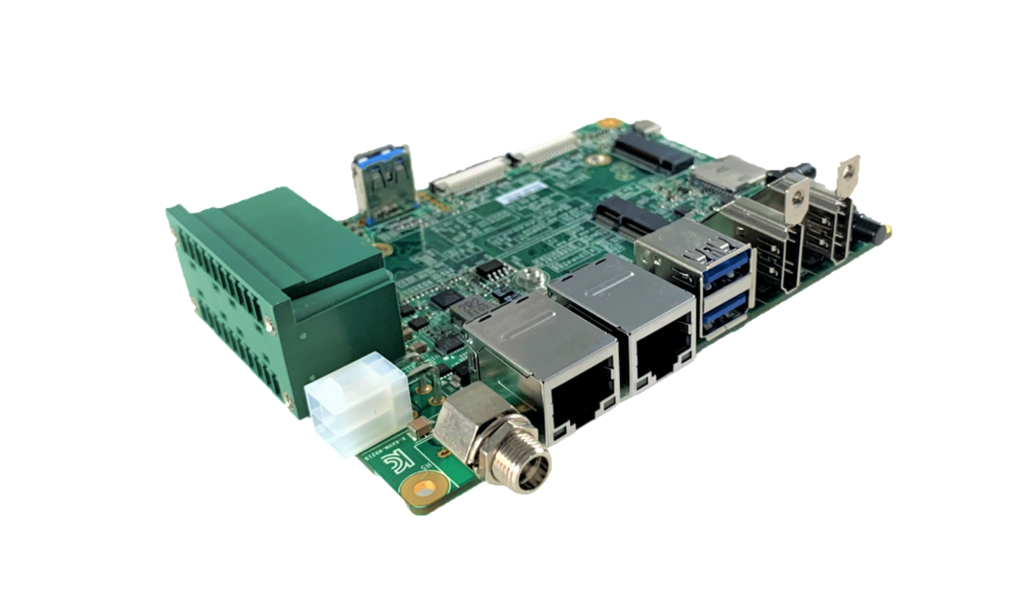

Standard Carrier Board NX215 for NVIDIA® Jetson Orin NX/Orin Nano

• Fully support NVIDIA® Jetson Orin Nano Module

• Supports Super Mode for Jetson Orin™ Nano

• 2x 2 Lane MIPI CSI-2 Camera Input

• 1x 4 Lane MIPI CSI-2 Camera Input (not for Orin NX)
• 2x GbE RJ-45, 20-pins expansion header
• 3x USB 3.0
• 2x 4Kp60 HDMI output (Nano/Orin NX:1x4Kp60, Orin Nano 1x4Kp30)
• 1x micro-SD card slot ( not for Orin NX/ Orin Nano)
• 2x M.2. for WIFI and SSD
• Operating temperature: 0°C ~ 70°C
• Dimension: W: 120mm x L: 90mm x H:26.5mm

Overview

AVerMedia’s NX215 Carrier board equips powerful NVIDIA® Jetson Orin NX/Orin Nano/Xavier™ NX/TX2 NX/NANO modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

NX215 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations for a variety of services.

Specifications

* Temperature is still under testing. Please contact your local sales for more information.

** All specifications are subject to change without prior notice.
