AI Box PC NX215B Equips NVIDIA® Jetson™ Xavier™ NX Module
Embedded NVIDIA® Jetson Xavier™ NX module (8GB / 16GB)
2x GbE, 3x USB 3.0, 2x 4Kp60 HDMI outputs
20 pins: 2x I2C, 1x UART, 4x GPIOs, 1x CAN (EU terminal block)
2x M.2 for Wi-Fi and SSD
1x micro-SD card slot
Operating temperature: 8G(0°C ~ 60°C)/16G (0°C ~ 60°C)
Dimension: W: 126mm x L: 96mm x H: 74mm
*Please contact your local sales for more information.

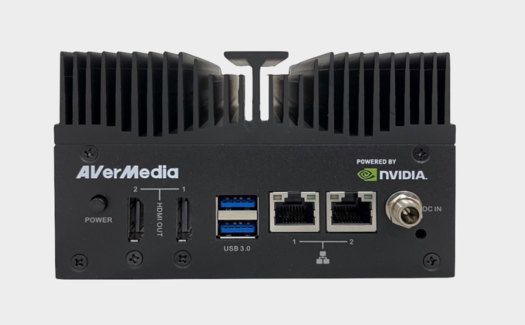

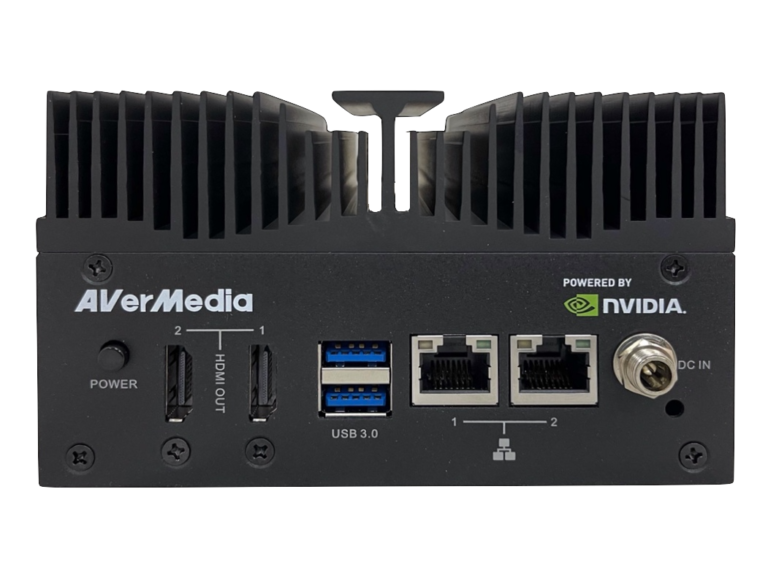

AVerMedia’s NX215B is the next generation of AI Box PC that is designed with the NVIDIA® Jetson Xavier™ NX module. Suited for situations with spatial concerns, this high inference AI Box comes in at a compact 126mm (W) x 96mm (L) x 74mm (H) housing. And with a fanless design, the thermally optimized housing is capable of operating at 0 ~ 60°C(8G) or 0~55°C(16G) while running virtually silently. Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
We understand that every situation has a set of unique requirements, and this is the reason the NX215B is designed with a rich assortment of I/O ports. From 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input (internal), to 2x 4Kp60 HDMI output, and 2x GbE RJ-45, you can rest assured that the NX215B carries key I/O ports required for your unique application. And if you require additional customizations, our customer-dedicated team will be happy to support you with rapid deployment.
Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | NX215B |
|---|---|
Type | Box PC |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Xavier™ NX module (8GB / 16GB) |
Networking | 2x GbE RJ-45 1x M.2. key E 2230 for Wi-Fi |
Display Output | 2x HDMI (3840 x 2160 at 60Hz) |
Temperature | Operating temperature 8G (0°C~60°C), 16G (0°C~60°C) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
MIPI Camera Inputs | • 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector • 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector |
USB | 1x USB 2.0 Micro-B for recovery 3x USB 3.0 Type-A (1x internal) |
Storage | 1x micro-SD card slot 1x M.2. key M 2280 for NVMe |
Expansion Header (Internal) | 20 pins: 2x I2C, 1x UART, 4x GPIOs, 1x CAN with transceiver (EU terminal block) |
Input Power | DC in Jack on board & ATX 4pin 12V/5A, 12V~24V is recommended. |
Power Cord | US/JP/EU/UK/TW/CN/AU |
Fan Module | Fanless Solution |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
PCB/Electronics Mechanical Info | W: 126mm x L: 96mm x H: 74mm (4.96” x 3.80” x 2.91”) Weight: 1kg |
Certifications | CE, FCC, KC |
Part Number | Description | Quantity |
|---|---|---|
064APOWERB3X | CABLE_POWER-C13-JP(3PIN)_1830㎜ | 1 |
064APOWERB32 | CABLE_POWER-C13-JP(2PIN+GND with warning label)_1830㎜ | 1 |
04131HGOUANK | ADAPT_AC/DC_100~240V_12V_5A_FSP060-DHAN3 | 1 |
065AMC421ACG | PLUG_TERMINAL BLOCK_1*10PIN | 2 |
Optional Accessories | Specs |
|---|---|
MIPI Camera | For 15 pin MIPI connector: raspberry pi camera v2 Manufacturer: APPRO.PHO B-04: IMX179 (8M) MIPI, 1080P (30fps) C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)
For 36 pin MIPI connector: Manufacturer: APPRO.PHO B-03: IMX334 (4K) MIPI, 4K (30fps) A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps) |
*Please contact your local sales for more information. All specifications are subject to change without prior notice.
Date : 2025-02-28 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.0.6.2.0 (Beta) | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode | ReadMe |
Date : 2025-02-24 00:00:00
| OS | Version | Compatible SOM | Release Note |
| [L4T 35.6.0] (Jetpack 5.1.4) | NX215B-R2.5.0.5.1.4 | Xavier NX | ReadMe |
Date : 2024-09-09 00:00:00
| OS | Version | Release Note |
| L4T 35.5.0 (Jetpack 5.1.3) | NX215B-R2.4.3.5.1.3 | ReadMe |
Date : 2023-09-18 00:00:00
| OS | Version | Release Note |
| L4T 35.4.1 (Jetpack 5.1.2) | NX215B-R2.3.0.5.1.2 (BETA) | ReadMe |
Date : 2023-07-06 00:00:00
| OS | Version | Rlease Note |
| L4T 35.3.1(Jetpack 5.1.1) | NX215B-BSP-R2.2.0.5.1.1 (BETA) | ReadMe |
Date : 2023-07-06 00:00:00
| OS | Version | Rlease Note |
| L4T 35.2.1(Jetpack 5.1) | NX215B-BSP-R2.1.1.5.1 (BETA) | ReadMe |
Date : 2023-07-06 00:00:00
| OS | Version | Rlease Note |
| L4T 35.1(Jetpack 5.0.2) | NX215B-BSP-R2.0.1.5.0.2 (BETA) | ReadMe |
Date : 2022-12-22 00:00:00
| OS | Version | Rlease Note |
| L4T 32.7.3 (Jetpack 4.6.3) | NX215B-R1.0.22.4.6.3 | ReadMe |
Date : 2022-07-13 00:00:00
| OS | Version | Rlease Note |
| L4T 32.6.1 (Jetpack 4.6) | NX215B-R1.0.17.4.6 | ReadMe |
Date : 2022-09-26 00:00:00
| OS | Version | Rlease Note |
| L4T 32.6.1 (Jetpack 4.6) | NX215B-R1.0.21.4.6 | ReadMe |
Date : 2022-08-31 00:00:00
| OS | Version | Release Note |
| L4T 32.6.1 (Jetpack 4.6) | NX215B-R1.0.18.4.6 | ReadMe |
Date : 2022-03-16 00:00:00
| OS | Version | Release Note |
| L4T_32.6.1 (JetPack 4.6) | NX215B-R1.0.11.4.6 | ReadMe |
Date : 2021-11-26 00:00:00
| OS | Version | Release Note |
| L4T_32.5.1 (JetPack 4.5.1 rev.1) | NX215B-R1.0.9.4.5.1 | ReadMe |
