Applies to NVIDIA® Jetson Orin Nano

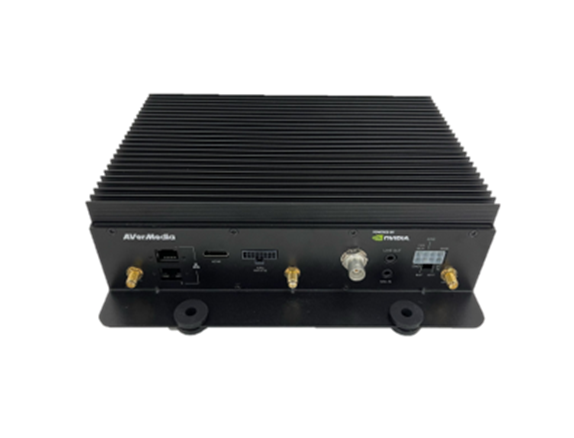

AVerMedia’s Box PC equips the incredibly small, yet power-efficient NVIDIA® Jetson Orin Nano module. This system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.
It is designed for vehicle and surveillance applications and features a rich assortment of I/O ports for rapid AI development and deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.
Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | ON135B |
|---|---|
Type | Box PC |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson Orin Nano module |
Networking | 2x GbE RJ-45 |
Display Output | 1x HDMI3840 x 2160 at 30Hz |
Video Input | 3x AHD/TVI/CVI Input (Max.1080P30), 16pin wafer with latch |
Control I/O | 3x RS232, DB9 Male 1x RS485, DB9 Male 2x CAN Bus with Isolated, 3.5mm Eurostyle terminal block 2x UART, 3.5mm Eurostyle terminal block 4x GPI with Isolated, 3.5mm Eurostyle terminal block 2x GPO with Isolated, 3.5mm Eurostyle terminal block |
Audio | 1x Mic in, 3.5mm phone jack 1x Line out, 3.5mm phone jack |
USB | 1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A |
Expansion IO (Internal) | 1x M.2 key E for Wi-Fi module (optional) 1x M.2 key M for M2 SSD (256G SSD pre-installed) 1x half mPCIe (usb interface) or GPS (UBlox NEO-M8) (optional) 1x mPCIe for 4G LTE module (optional) |
Input Power | DC 9V-36V ATX-8P ACC/DC Output |
Thermal solution | Fanless heatsink |
Buttons | Power and Recovery |
Indicator | 5x LED Indicator for device status : PWR/ACC/GPS/Wi-Fi/SSD |
Super capacitor | 4x 30F/2.7V |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
Temperature | Operating temperature 0°C~50°C (TBD) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
Mechanical Info | W: 160mm * L: 235mm * H: 70mm |
Package Include | •Box PC x1 (256G SSDx1, 64G Micro SDx1 included) •AHD cable x1 •Terminal block plug x2 •Screws |
Wi-Fi Module | M.2. key E 2230 | Intel® Wireless-AC 9260 |
4G LTE Module | mPCIe | SIM7600G-H |
