Peripheral - USB-board

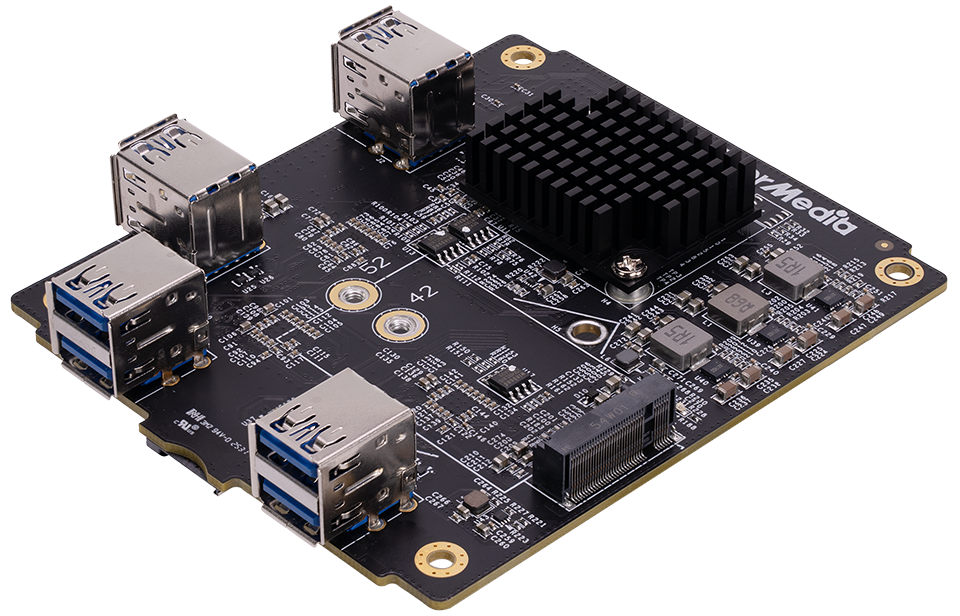

USB Board [New]

Applies to AVerMedia's D317 series

•8x USB port

•1x M.2 B key to support 4G/5G function

Model	USB board
Applicable product	D317
Feature	8x USB 3.0 (5Gbps) type-A Ports M.2 Key.B 3042/3052 for 4G/5G Module Independent USB PHY design, Optimized for USB webcam functionality
Power Input	12V , PoC power on coaxial
Temperature	Operating temperature -40°C ~ 60°C (TBD, The actual situation depends on the box PC spec. ) Storage temperature -40°C ~ 85°C (TBD)
Mechanical	W: 92mm x L: 107mm
Package	USB board Coaxial cable Screws

* All specifications are subject to change without prior notice.

2D drawing

3D drawing
