Applies to NVIDIA® Jetson AGX Orin (32GB / 64GB) & AGX Orin Industrial module
1x M.2 B key for 4G & 5G, 1x M.2. E key for Wi-Fi 6E and 1x M.2. M key for SSD and capture
1x GbE & 1x 10G RJ-45 ethernet for dozens of IP cameras streaming simultaneously in smart security application
10GigE Vision camera connector for smart inspection and 1x PCIe slot for multi-function expansion
Operating temperature: -25°C ~ 65°C
Dimension: 181.5mm (W) x 137mm (L) x 88mm (H) (with mounting hole)

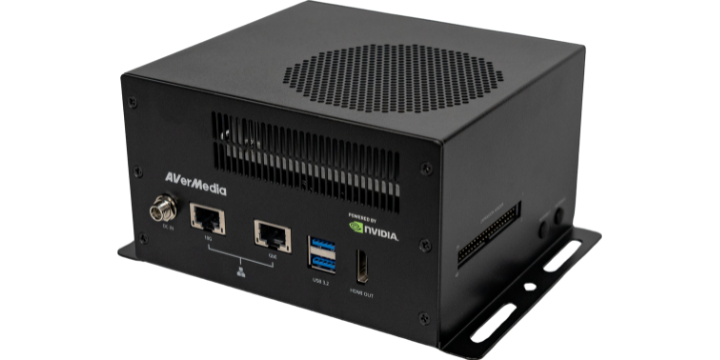

AVerMedia Box PC D315AOB-1 equips with NVIDIA® Jetson AGX Orin & AGX Orin Industrial module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This optional SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.
D315AOB-1 features a 120-pin high-speed connector designed for connecting MIPI SerDes cameras, catering to the needs of AMRs (please note that the adapter board and MIPI camera are not included). In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315AOB-1 furnishes a PCIe slot for multi-function expansion and excellent compatibility with 5G and Wi-Fi 6.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.
Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.
Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.
Model | D315AOB-1 | |
|---|---|---|
Type | BOX PC | |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson AGX Orin (32GB / 64GB) & AGX Orin Industrial module | |
Networking | •1x GbE RJ-45 •1x 10G RJ-45 | |
Display Output | 1x HDMI output | |
Temperature | •Operating temperature -25°C~65°C •Storage temperature -40°C ~ 85°C •Relative humidity 40 °C @ 95%, Non-Condensing | |
MIPI Camera Inputs (Internal) | GMSL2/FPD-link III/V-by-One® HS (STURDeCAM20 optional)* *The adaptor board is not included but can be customized based projects. Please contact our sales team for more infomation. | |
USB | •1x USB 2.0 Micro-B for recovery •2x USB 2.0 Type-A •2x USB 3.2 Type-A | |
Storage | 1x micro-SD card slot | |
Expansion Header | •40-pin (UART, SPI, CAN, I2C, I2S, GPIOs ) •1x M.2 B key (for 4G LTE module or 5G module) •1x M.2 E key (for Wi-Fi 6E) •1x M.2 M key (for SSD or AVerMedia capture card: CN311-H, CN312SW, CN312MW) •1x Micro SIM socket •1x PCIe x16 (only support x8 PCIe lanes) •1x CAN bus with transceiver •120-pin (for MIPI SerDes) •OOB support (only Power ON/OFF) | |
Power requirement | Voltage | DC 12V~54V |
Current DC in JACK on board: 7A Max ATX 4pin: 10.8A Max | DC in JACK on board: 7A Max ATX 4pin: 10.8A Max | |
Power Cord | US/JP/EU/UK/TW/AU/CN | |
Thermal Solution | Fan | |
Buttons | Power and Recovery | |
RTC Battery | Support RTC battery and battery life monitoring by MCU | |
PCB/Electronics Mechanical Info | 181.5mm (W) x 137mm (L) x 88mm (H) (with mounting hole) | |
Certifications | CE, FCC, KC | |
Model | SKU Number | NVIDIA SOM | |
|---|---|---|---|
D315AOB-1 | D315AOB-1-32G-001 | AGX Orin 32G |
|
D315AOB-1 | D315AOB-1-32G-002 | AGX Orin 32G | RMII Function (Eth) |
D315AOB-1 | D315AOB-1-64G-001 | AGX Orin 64G |
|
D315AOB-1 | D315AOB-1-64G-002 | AGX Orin 64G | RMII Function (Eth) |
D315AOB-1 | D315AOIB-1-64G-001 | AGX Orin Industrial |
|
D315AOB-1 | D315AOIB-1-64G-002 | AGX Orin Industrial | RMII Function (Eth) |
Part Number | Description | Quantity |
|---|---|---|
064APOWERBR5-IPD | CABLE_POWER-C13-KR/EU_1830㎜ | 1 |
064APOWERBR2-IPD | CABLE_POWER-C13-USA_1830㎜ | 1 |
064APOWERBRW-IPD | CABLE_POWER-C13-UK_1830㎜ | 1 |
041318GOUANS | ADAPT_AC/DC_100~240V_54V_2.78A_W/LOCK M8 | 1 |
041318GOUANL | ADAPT_AC/DC_100~240V_54V_2.78A_FSP150 | 1 |
065AMC420ACF | PLUG_TERMINAL BLOCK_1*3PIN | 1 |
Item | Part Number | Product Name | Type | Description | Remark |
|---|---|---|---|---|---|
1 | 61D317GM01AF | Board | Support 8x GMSL camera via mini fakra cable | Need the internal power cable | |
2 | 60D3170001AB | Cable | Support standard FAKRA x4 for connecting to GMSL board |
| |
3 | 0700WLAN0AWX | Board | Wi-Fi 6E-intel AX210 (include 1xcable and 2xantennas) |
| |
4 | 60D3150000AE | Board | Quectel EM05_LTE Cat 4 M.2 Module+2xCable+2xAntenna |
| |
5 | 60D3150001AD | Board | Quectel RM520N Series_5G Sub-6 GHz M.2 Module+4xCable+4xAntenna |
| |
6 | 61CN312M00AW | Board | 2K SDI/HDMI Dual-Channel M.2 Video Frame Grabber |
| |
7 | 61CN312SW1AD | Board | 2K SDI Dual-Channel M.2 Frame Grabber |
| |
8 | 61CN311H00AR | Board | 4Kp30 HDMI M.2 Video Frame Grabber |
|
Date : 2026-07-20 00:00:00
| OS | Version (Beta) | Compatible SoMs | Release Note | MIPI Raspberry Pie now only support V2 (IMX219) & V3 (IMX477) | GMSL Camera drivers are currently not supported in this BSP version |
| L4T r38.4.0 (Jetpack 7.2.0) | AVERMEDIA_JETPACK-R4.0.0.7.2.0 | Thor T5000 & T4000 AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode | ReadMe |
Date : 2026-03-24 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.4 (Jetpack 6.2.2) | AVERMEDIA_JETPACK-R1.4.0.6.2.2 | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode | ReadMe |
Date : 2025-09-11 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.4 (Jetpack 6.2.1) | AVERMEDIA_JETPACK-R1.2.3.6.2.1 | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode Orin NX Super Mode | ReadMe |
Date : 2025-07-10 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.10.6.2.0 (Beta) | AGX Orin | ReadMe |
Date : 2025-05-07 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.4.6.2.0 (Beta) | AGX Orin | ReadMe |
Date : 2025-02-28 00:00:00
| OS | Version | Compatible SoMs | Release Note |
| L4T r36.4.3 (Jetpack 6.2) | AVERMEDIA_JETPACK-R1.1.0.6.2.0 (Beta) | AGX Orin Orin NX & Orin Nano Orin Nano Super Mode | ReadMe |
Date : 2025-02-25 00:00:00
| OS | Version | Release Note |
| L4T r35.6 (Jetpack 5.1.4) | D315AO-R2.6.0.5.1.4 | ReadMe |
Date : 2024-11-13 00:00:00
| OS | Version | Release Note |
| L4T r36.4 (Jetpack 6.1) | D315AO-R3.2.0.6.1.0 (beta) | ReadMe |
Date : 2024-10-07 00:00:00
| OS | Version | Release Note |
| L4T 36.3 (Jetpack 6.0) | D315AO-R3.1.3.6.0.0 | ReadMe |
Date : 2024-05-28 00:00:00
| OS | Version | Release Note |
| L4T 35.4.1 (Jetpack 5.1.3) | D315AO-R2.5.2.5.1.3 | ReadMe |
