Frame Grabber-PCIe - C725B

Overview Download
Where to Buy

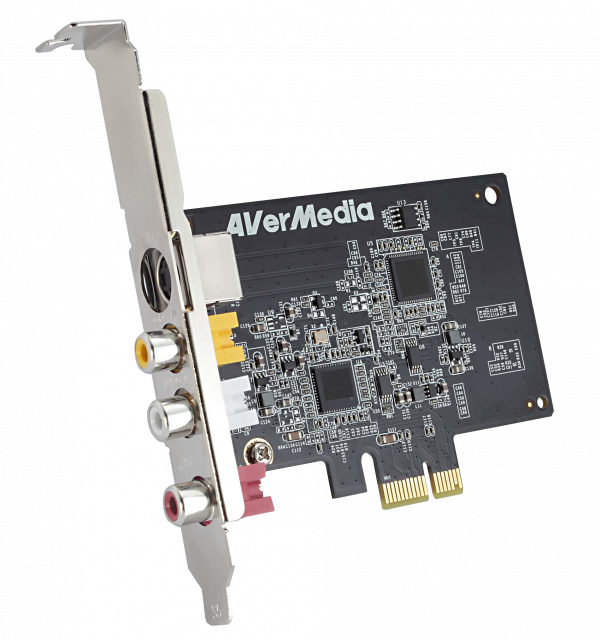

C725B

SD PCIe Frame Grabber

  • Fully DirectShow compatible

  • Supports uncompressed video capture for AVI or WMV formats

  • Supports snapshots for BMP or JPG formats

  • Captures and digitizes NTSC/PAL/SECAM analog signals

  • Supports multiple programming languages

Overview



The AVerMedia C725B is a PCI-E video capture card equipped with composite, S-Video and stereo audio inputs for digitizing video from analog signals into uncompressed AVI format at 25/30 fps for a wide range of resolutions. It supports PAL, NTSC and SECAM video standards, and also comes with a software development kit that includes frequently used applications to allow system developers to integrate apps in various operating platforms.

Specifications

Model

C725B

Host Interface

PCIe

Input

S-Video

Composite video

RCA audio

Input Video Resolution

160 × 120, 176 × 144, 240 × 180, 240 × 176
320 × 240, 352 × 240, 352 × 288 (PAL only)
640 × 240, 640 × 288, 640 × 480
704 × 576 (PAL only), 720 × 240, 720 × 288
720 × 480, 720 × 576 (PAL only)

Pixel Format

YUY2(4:2:2), UYVY (4:2:2), RGB24 (4:4:4)

Color Adjustment

Brightness, Contrast, Hue, Saturation, Sharpness

Multi-Card Support

Yes (up to 8 pcs)

Programming Language

Visual Basic, Visual C++, Delphi, C#, VB.NET

Operating Environment

Temperature: 0 to +65 ℃
Humidity: 15 to 80% RHNC

Storage Environment

Temperature: -30 to +65 ℃
Humidity: 15 to 90% RHNC

Power Requirement

3.3V max 400mA

Dimensions (L x W)

93.5 x 68.78mm

CPU

Intel® Pentium® 4 3.0 GHz

AMD Athlon™ 64 3200+

Memory

512 MB RAM

VGA

VGA card with support for DirectX9.0c or above

Supported OS

Windows 7/ 8.1/ 10 (32/ 64 bits)*

Sound Card

Yes

*All specifications are subject to change without prior notice.
‧ For driver availability, please contact support
‧ Driver customization service by request

‧ For home use, the C725B does not support branded computer systems equipped with Intel 12th or 13th Gen CPUs, whether running Windows 10 or Windows 11, which may result in screen freezing.

DOWNLOAD

Datasheet
Datasheet
Datasheet
BSP for Orin Nano
BSP Version Update
Mechanical
BSP for AGX Orin
BSP for Orin NX
FAQ
2D drawing
Source code
3D drawing
Datasheet
Driver
User Manual
BSP for Nano
BSP for NX
BSP for TX2 NX
SDK and Capture Studio
BSP

Date : 2024-03-29 00:00:00

                   Version: [Windows Driver] V10.2.64.126
                   OS: Win10 (2004 above) x64 /Win11 x64


Date : 2021-12-24 00:00:00

Version: [Windows Driver] 10.2.x.116
OS: Win10 x86/Win10 x64
Description: Win10 WHQL
