• 1x M.2 B key for 4G & 5G, 1x M.2 E key for Wi-Fi 6E and
  1x M.2 M key for SSD and capture
• 120-pin highspeed connector for MIPI SerDes cameras, such as GMSL2/FPD-link III/V-by-One® HS, to deploy in AMRs application
• 1x GbE & 1x 10G RJ-45 ethernet for dozens of IP cameras streaming simultaneously in smart security application
• 10GigE Vision camera connector for smart inspectionand 1x PCIe slot for multi-function expansion
• Operating temperature: -40°C ~ 85°C
• Dimension: 141.5mm(W) x 133.5mm(L) x 29mm(H)
• Support StereoLabs ZED Link Capture Card (Quad)
• Support OOB full function

Overview

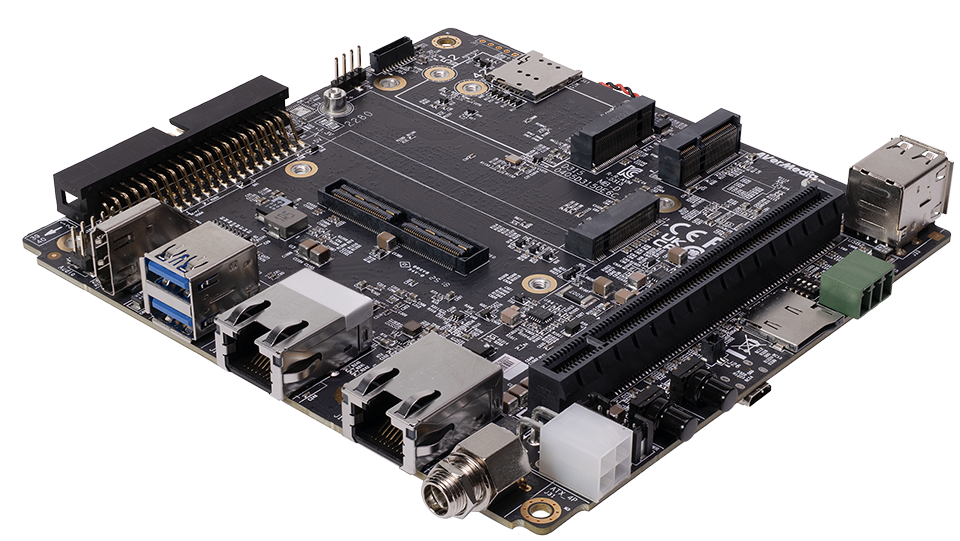

AVerMedia Carrier Board D315-2 support NVIDIA® Jetson AGX Orin & AGX Orin Industrial , which brings next-level AI performance and power-efficient capability for all autonomous machines. This optional SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

D315-2 includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315-2 furnishes a PCIe slot for multi-function expansion and excellent compatibility with 5G and Wi-Fi 6.

Smart Inspection

Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.
