Applies to NVIDIA® Jetson AGX Orin (32G/64G) & AGX Orin Industrial module
1x M.2 B key for 4G & 5G, 1x M.2. E key for Wi-Fi 6E and 1x M.2. M key for SSD and capture
1x GbE & 1x 10G RJ-45 ethernet for dozens of IP cameras streaming simultaneously in smart security application
10GigE Vision camera connector for smart inspection and 1x PCIe slot for multi-function expansion
Operating temperature: -25°C ~ 65°C
Dimension: 181.5mm (W) x 137mm (L) x 88mm (H) (with mounting hole)

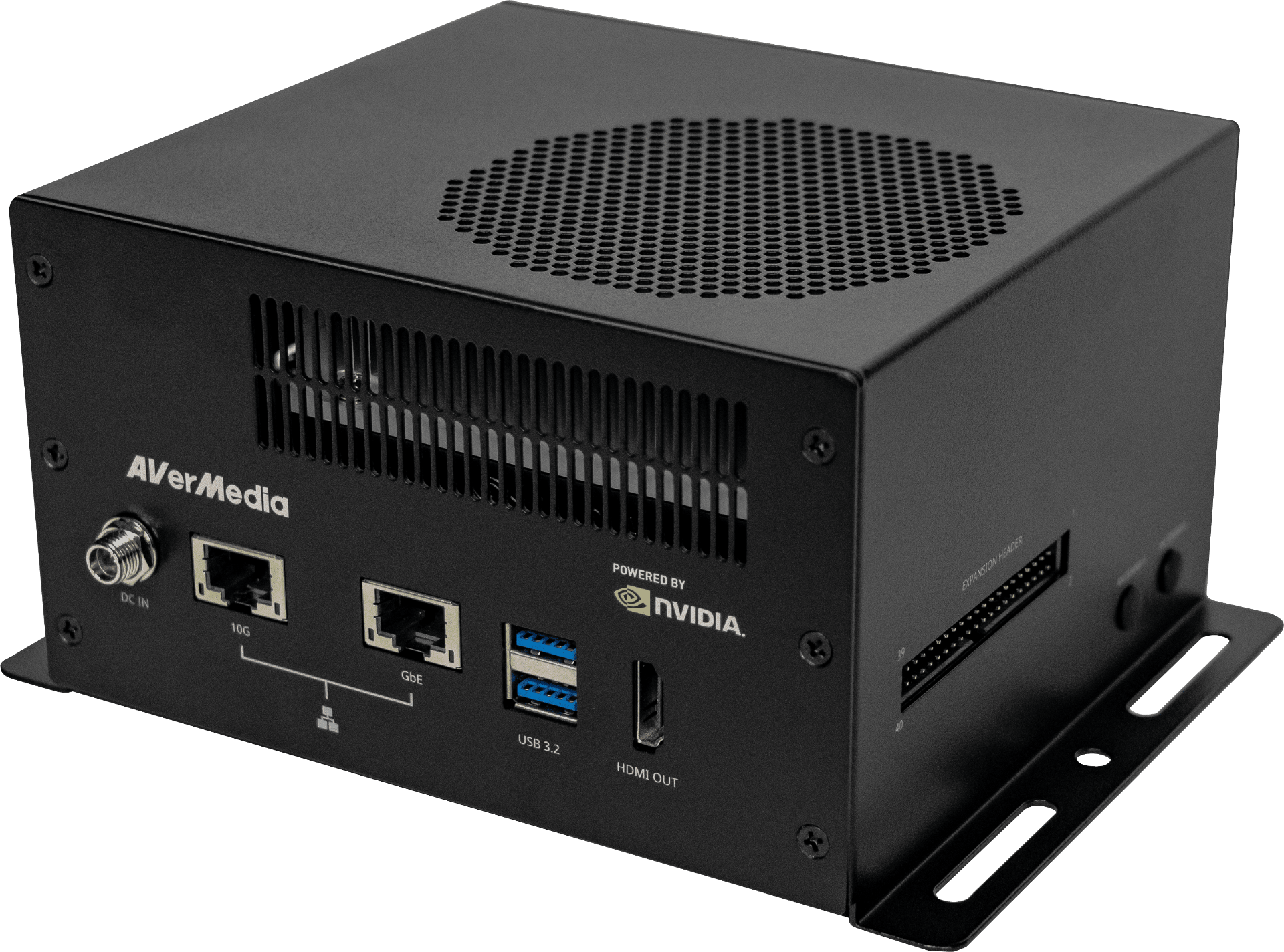

AVerMedia Box PC D315AOB-2 equips with NVIDIA® Jetson AGX Orin & AGX Orin Industrial module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This optional SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.
D315AOB-2 features a 120-pin high-speed connector designed for connecting MIPI SerDes cameras, catering to the needs of AMRs (please note that the adapter board and MIPI camera are not included). In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315AOB-2 furnishes a PCIe slot for multi-function expansion and excellent compatibility with 5G and Wi-Fi 6.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.
Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.
Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.
Model | D315AOB-2 | |
|---|---|---|
Type | BOX PC | |
NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson AGX Orin (32G/64G) & AGX Orin Industrial module | |
Networking | •1x GbE RJ-45 •1x 10G RJ-45 | |
Display Output | 1x HDMI output | |
Temperature | •Operating temperature -25°C~65°C •Storage temperature -40°C~85°C •Relative humidity 40 °C @ 95%, Non-Condensing | |
MIPI Camera Inputs (Internal) | GMSL2/FPD-link III/V-by-One® HS (STURDeCAM20 optional) | |
USB | •1x USB 2.0 Micro-B for recovery •2x USB 2.0 Type-A •2x USB 3.2 Type-A | |
Storage | 1x micro-SD card slot | |
Expansion Header | •40-pin (UART, SPI, CAN, I2C, I2S, GPIOs) •1x M.2 B key 3042(4G) LTE module or 3052(5G) module •1x M.2 M key (for SSD or AVerMedia capture card: CN311-H, CN312SW, CN312MW) •1x Micro SIM socket •1x PCIe x16 (only support x8 PCIe lanes) •1x CAN bus with transceiver •120-pin (for MIPI SerDes) •OOB full support (Via J62) | |
Power requirement | Voltage | DC 12V~54V |
Current | DC in JACK on board: 7A Max ATX 4pin: 10.8A Max | |
Power Cord | US/JP/EU/UK/TW/AU/CN | |
Fan module | Heat sink with fan | |
Buttons | Power and Recovery | |
RTC Battery | Support RTC battery and battery life monitoring by MCU | |
PCB/Electronics Mechanical Info | 181.5mm (W) x 137mm (L) x 88mm (H) (with mounting hole) Weight: 1.5kg | |
Certifications | CE, FCC, KC | |
Model | SKU Number | NVIDIA SOM | ||
|---|---|---|---|---|
D315AOB-2 | D315AOB-2-32G-001 | AGX Orin 32G |
|
|
D315AOB-2 | D315AOB-2-32G-002 | AGX Orin 32G | RMII Function (Eth) |
|
D315AOB-2 | D315AOB-2-32G-003 | AGX Orin 32G |
| 8 port GMSL |
D315AOB-2 | D315AOB-2-32G-004 | AGX Orin 32G | RMII Function (Eth) | 8 port GMSL |
D315AOB-2 | D315AOB-2-64G-001 | AGX Orin 64G |
|
|
D315AOB-2 | D315AOB-2-64G-002 | AGX Orin 64G | RMII Function (Eth) |
|
D315AOB-2 | D315AOB-2-64G-003 | AGX Orin 64G |
| 8 port GMSL |
D315AOB-2 | D315AOB-2-64G-004 | AGX Orin 64G | RMII Function (Eth) | 8 port GMSL |
D315AOB-2 | D315AOIB-2-64G-001 | AGX Orin Industrial |
|
|
D315AOB-2 | D315AOIB-2-64G-002 | AGX Orin Industrial | RMII Function (Eth) |
|
D315AOB-2 | D315AOIB-2-64G-003 | AGX Orin Industrial |
| 8 port GMSL |
D315AOB-2 | D315AOIB-2-64G-004 | AGX Orin Industrial | RMII Function (Eth) | 8 port GMSL |
Item | Part Number | Product Name | Type | Description |
|---|---|---|---|---|
1 | 0700WLAN0AWX | Board | Wi-Fi 6E-intel AX210 (include 1xcable and 2xantennas) | |
2 | 60D3150000AE | Board | Quectel EM05_LTE Cat 4 M.2 Module+2xCable+2xAntenna | |
3 | 60D3150001AD | Board | Quectel RM520N Series_5G Sub-6 GHz M.2 Module+4xCable+4xAntenna | |
4 | 61CN312M00AW | Board | 2K SDI/HDMI Dual-Channel M.2 Video Frame Grabber | |
5 | 61CN312SW1AD | Board | 2K SDI Dual-Channel M.2 Frame Grabber | |
6 | 61CN311H00AR | Board | 4Kp30 HDMI M.2 Video Frame Grabber |
