- Multimodal LLM/SLM deployment
- Application-ready for fast prototyping & deployment
- For Smart Traffic, Smart Security and Smart City Applications
•Ready-to-Run AI Performance
NVIDIA Jetson pre-activated for powerful LLM/VLM inference at the edge.
•Precision Multimodal Input
High-fidelity video and audio capture to power multimodal AI.
•Developer - Friendly Integration
Combine AVerMedia’s three devices for seamless compatibility and complete
technical supports.

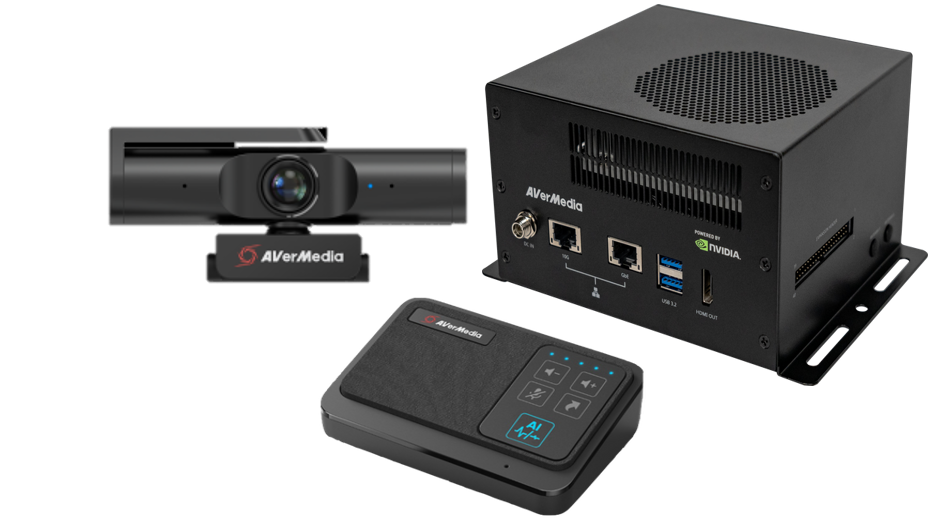

The AVerMedia AI Fusion Kit – Conversational AI Edition is a high-fidelity video and audio input kit that streams directly into AI models, tailored for LLM and Conversational AI developers. It delivers precision, reliability, and seamless integration for multimodal AI applications. Whether you’re building conversational agents or rapidly prototyping, this all-in-one solution ensures AI models receive inputs accurately, efficiently, and consistently. Optimized for speech AI and vision inputs, it empowers developers to build more natural, interactive, and responsive AI systems. The kit also supports NVIDIA Jetson AI Lab tutorials, enabling users to leverage official resources for faster deployment.
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Gather and deliver the information to streamline decisions and create more value for the customer.
Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.
Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Model | D315AOB-2-32G |
|---|---|
Type | Box PC |
NVIDIA Jetson SOM | NVIDIA® Jetson AGX Orin 32G module |
Networking | •1x GbE RJ-45 •1x 10G RJ-45 |
Display Output | 1 x HDMI output |
Temperature | Operating temperature: -25°C ~ 65°C |
MIPI Camera Inputs(Internal) | GMSL2/FPD-link III/V-by-One® HS (STURDeCAM20 optional) |
USB | •1x USB 2.0 Micro-B for recovery •2x USB 2.0 Type-A •2x USB 3.2 Type-A |
Storage | •1x micro-SD card slot •256G SSD Preinstalled |
Expansion Header | •40-pin (UART, SPI, CAN, I2C, I2S, GPIOs ) •1x M.2 B key 3042(4G) LTE module or 3052(5G) module •1x M.2 M key (for SSD) •1x Micro SIM socket •1x PCIe x16 (only support x8 PCIe lanes) •1x CAN bus with transceiver •120-pin (for MIPI SerDes) |
Power requirement
| Voltage: DC 12V~54V |
Current: DC in JACK on board: 7A Max ATX 4pin: 10.8A Max | |
Fan module | Heat sink with fan |
Buttons | Power and Recovery |
RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
PCB/Electronics Mechanical Info | 181.5mm (W) x 137mm (L) x 88mm (H) (with mounting hole) Weight: 1.5kg |
Certifications | CE, FCC, KC |
Package | 1x Box PC |
Model | USB 3.0 4K UHD Webcam |
|---|---|
Image Sensor | Sony 4K CMOS sensor |
Inage Resolution | 8 Megapixels |
Max Frame Rate | 3840 × 2160 @ 30 fps1920 × 1080 @ 60 fps |
Lens F# | 2.8 |
Focus Method (Lens Type) | Fixed focus |
Field of View | Diagonal 94° |
Video Mode | MJPEG and UYVY |
Working Distanc | 50 ~ 200 cm (1.64 ~ 6.56 ft.) |
Minimum Working Distance | 10 cm (3.94 in.) |
Minimum Illumination | 1.4 lx |
Microphone Type | Stereo built-in microphones |
UVC Support | Yes |
Dimensions (W × D × H)/Weight | 130 × 52.6 × 29 mm (5.12 × 2.07 × 1.14 in.)(Without Base) 440g |
Note | Live Streamer CAM does not support USB 2.0 |
Package | •Live Streamer CAM 513 (PW513) •USB 3.0 Type-C to Type-A Cable •Quick Guide |
Model | AI Speakerphone |
|---|---|
Connection Type | USB-A to USB-C cable |
Power Supply | 5 V / 0.5 A |
Speaker | 3 W (max.) |
Speaker Frequency Response | 150 Hz – 14 kHz |
Microphone Sensitivity | -29 dB V/Pa @ 1 kHz |
Microphone Frequency Response | 150 Hz – 7 kHz |
Microphone S/N Ratio | > 59 dB |
Effective Range | 3 m (unobstructed) |
Dimension(W x D x H)/Weight | 12 x 8 x 4 cm (4.7 x 3.1 x 1.6 in.) |
Package | •Speakerphone •USB-A to USB-C cable x1 (Cable length 2 m/6.56 ft.) •Quick Guide |
*For more detailed specification of OOB module and 5G daughter board, please check the "Accessory" page.
**Please contact your local sales for more information. All specifications are subject to change without prior notice.
