D337 AI Inference Server [NEW]

Tiger Dual NVIDIA® Jetson AGX Thor™ T5000 Platform

For Smart City/Inspection/Public Infrastructure

2U Rack Mount with Rack Ears
2x D333 with T5000 inside
4x FAN ( Each D333 supporting FAN x 2, SUNON SUNON PF40561BX-Q100-S99 ), 12V/24W

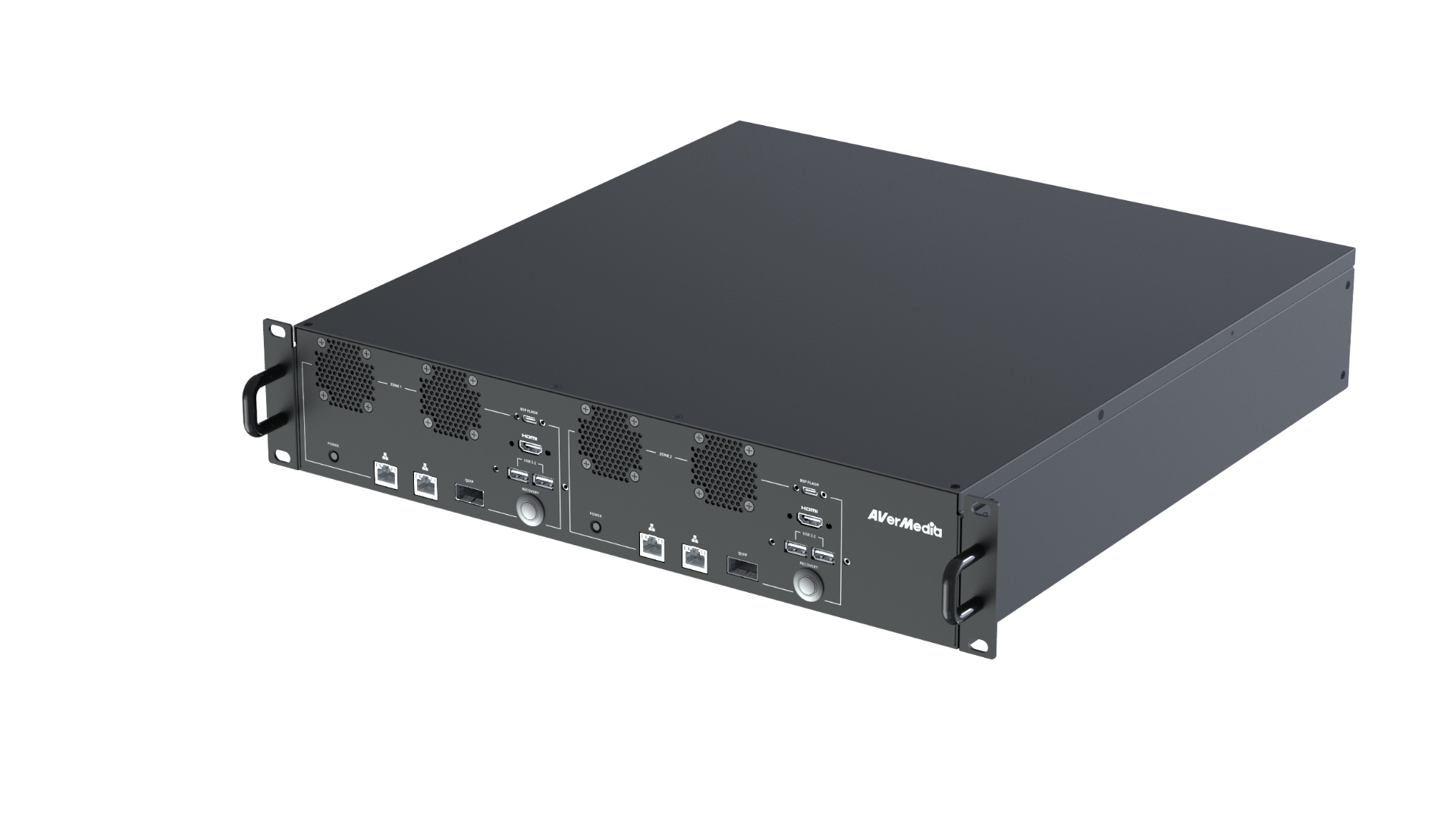

Front Side

Zone 1:

1x USB Type C for BSP Flash
1x USB Gen 2 Type A
1x HDMI type A for HDMI 2.0 ( 3840 x 2160 at 60Hz )
2x RJ-45 for Giga LAN ( right for OOB )
QSFP28 for Fiber 100G
1x Power button
1x Recovery button

Zone 2:

1x USB Type C for BSP Flash
1x USB Gen 2 Type A ( right for OOB )
1x HDMI type A for HDMI 2.0 ( 3840 x 2160 at 60Hz )
2x RJ-45 for Giga LAN
QSFP28 for Fiber 100G
1x Recovery button
Dimension:
W: 438 mm x L: 451.1mm x H: 88.9mm (without wall mount & power)
W: 482.6 mm x L: 509.5mm x H: 88.9mm (with wall mount & power)

Overview

AVerMedia's D337 AI Inference Server equips Dual Powerful NVIDIA Jetson T5000™. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D337 AI Inference Server is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Key Industries

AVerMedia's Edge AI solutions support smarter surveillance, centralized video management, and AI-powered security applications.

Smart City – Traffic Management

AI-powered video analytics enable real-time traffic monitoring, vehicle recognition, and traffic flow optimization to improve urban mobility and road safety.

Smart Inspection

AI-driven visual inspection enables fast and accurate defect detection, improving quality control, operational efficiency, and production reliability.

Smart Public Infrastructure

Intelligent video monitoring enhances safety, security, and operational efficiency across airports, railway stations, and public spaces.

Specifications

Model	D337
NVIDIA Module Compatibility	NVIDIA Jetson T5000™
Networking	2U Rack Mount with Rack Ears 2x D333 with T5000 inside 4x FAN ( Each D333 supporting FAN x 2, SUNON SUNON PF40561BX-Q100-S99 ), 12V/24W
Temperature	Operating temperature: 0°C ~ 40°C ( 32°F ~ 104°F ), IEC 60068, air flow: 0.7m/s Storage temperature: -10°C ~60°C ( 14°F ~ 140°F ), IEC 60068 Storage Humidity: 5 ~ 95% @ 40°C, Non-Condensing
External I/O	Front Side Zone 1: 1x USB Type C for BSP Flash 1x USB Gen 2 Type A 1x HDMI type A for HDMI 2.0 ( 3840 x 2160 at 60Hz ) 2x RJ-45 for Giga LAN ( right for OOB ) QSFP28 for Fiber 100G 1x Power button 1x Recovery button Zone 2: 1x USB Type C for BSP Flash 1x USB Gen 2 Type A ( right for OOB ) 1x HDMI type A for HDMI 2.0 ( 3840 x 2160 at 60Hz ) 2x RJ-45 for Giga LAN QSFP28 for Fiber 100G 1x Recovery button
Internal I/O	2x M.2 2280 NVMe M Key for SSD (Each D333 has one on board)
Security	TPM: Yes Each D333 has one TPM ( TI SLB9672XU2.0 ) on board
System Storage	2x M.2 2280 NVMe M Key for SSD (Default: Pre-Installed 1TB SSD for each M Key )
Power Supply	AcBel R2CU4551A x 1 Redundant Power 550W 100V ~ 127V / 200V ~ 240V
RTC Battery	Support RTC battery and battery life monitoring by MCU
Mechanical Info	W: 438 mm x L: 451.1mm x H: 88.9mm (without wall mount & power) W: 482.6 mm x L: 509.5mm x H: 88.9mm (with wall mount & power)
Certification	CE,FCC, VCCI, KC (TBD)
Others	Two D333 carrier boards are connected via external QSFP28 Fiber
Package	1x AI Inference Server 2x Power Cord (By region)
