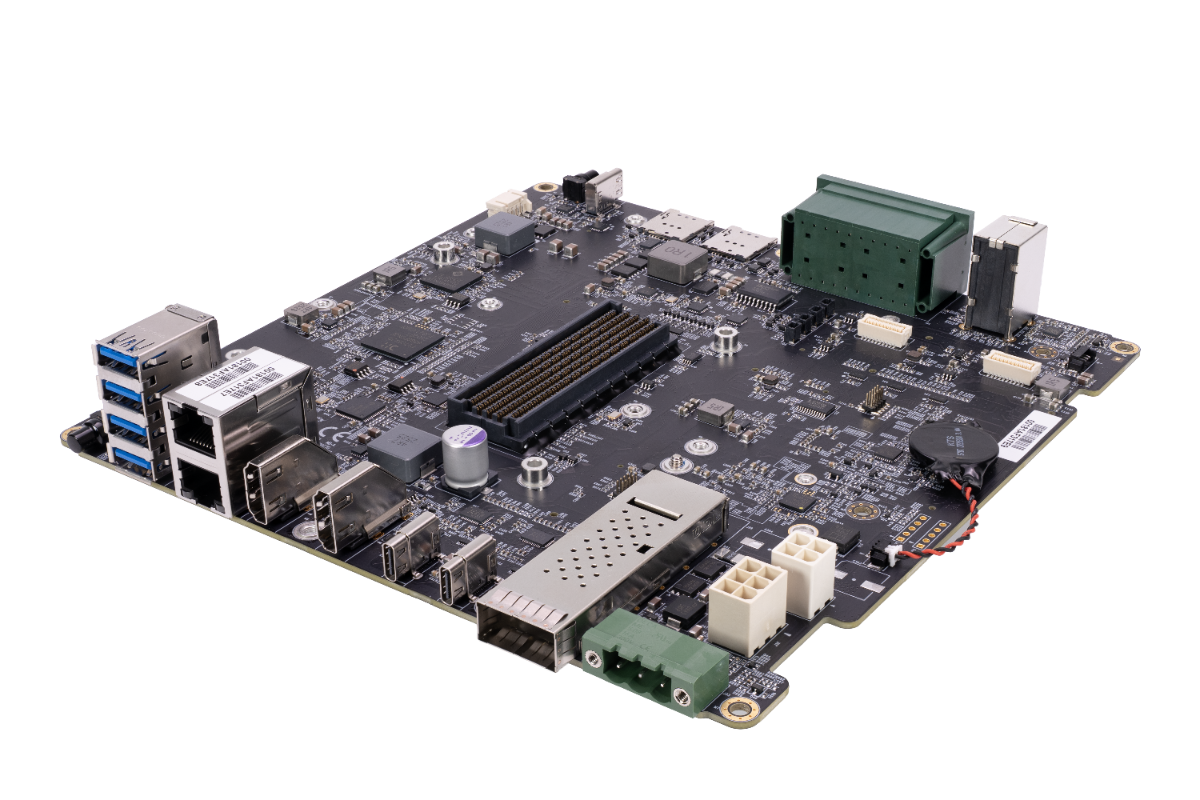

NVIDIA  Module Compatibility

NVIDIA Jetson T5000™/Jetson T4000™

Networking

• 2x GbE RJ-45 (1 × port supports OOB NCSI for optional OOB module)

• 1x QSFP (4× 10 GbE for JetPack 7.1 / 4 x 25 GbE for JetPack 7.2)

• 1 x M.2. key E 2230 for Wi-Fi 6

• 1x M.2 Key B 3042/3052 for 4G/5G

SIMSlot

2 × SIM slots for 4G/5G module; dual SIM capability depends on the installed cellular module

Display Output

2 x HDMI output (3840 x 2160 at 60Hz)

Temperature

Operating temperature: -40 to 85°C (carrier board, W/O audio)

Operating temperature: -25 to 85°C (carrier board, W/ audio)

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

Camera Inputs

1x 120pin for GMSL camera board

USB

• 1x USB 3.2 Type-C for BSP install

• 1x USB 3.2 Type-C (usage limitations apply; refer to User Manual for details)

• 4x USB 3.2 Type-A (5Gbps x2 ; 10Gbps x2)

• Optional 8x USB3.2 Type-A (via daughter board)

Audio

2x 3.5mm phone jack for Mic in & line out.

Storage

• 2x NVMe M.2 Key M 2280

  • 1x NVMe M.2 Key M 2280 PCIe Gen5 x2 (8xPoE, 8xUSB board, either one)

  • 1x NVMe M.2 Key M 2280 PCIe Gen5 x4

TPM

TI SLB9672XU2.0 on board

Expansion

• 2x10 Euro Terminal Block 1x CAN-FD (Isolated 3KV), 3x CAN-FD with Transceiver, +5V output 1A, +3.3V output 1A,UART, I2C

• 20pin expansion header-1: 1x5V(Maximum 1A), 1x3.3V(Maximum 1A) power Output, UARTH1, I2C, GPO(4), GPI(5), PWM(2)

• 20pin expansion header-2: 1x5V(Maximum 1A), 1x3.3V(Maximum 1A) power Output, UARTH2, I2C, GPO(4), GPI(5), PWM(2)

• 2x 5-pin JTAG connector

• 1x 40pin coaxial connector for PCIe expansion (daughter board 8xPSE/8xUSB )

GPS

1x mPCIe for Optional Dual-RTK GNSS support (via daughter board)

Sensor

Temperature sensor for PCB top/bot Temperature measure

Power requirement

Terminal block 3Pin & Mini-fit 6pin (Internal)
9~36V DC Input
ACC IN / IGN Control (ACC optional, via switch)

Thermal Solution

1x SOM FAN

2x Chassis Fan (12V fan wafer)

Buttons

Power and Recovery

LED

1x system power
1x input power

MISC

• 1x Mini-fit 4Pin DC output for PSE expansion (Pass-through 10A)

• 1x DC output wafer (9~12V) for GMSL

• 1x USB-C for Debug_UART (Share with OOB)

• DIP Switch for function control , AT/ATX Mode select, ACC Enable / Ignore ACC for Development (default)

RTC Battery

Support RTC battery and battery life monitoring by MCU

PCB/Electronics Mechanical Info

• W: 190mm x L: 190mm

• Weight: 250g (TBD)

Certifications

CE, FCC, VCCI, KC (TBD)

Package

1x Carrier board

2x IO Board

1x Power Adapter (without Power cord)

Screws

Nuts
